UHT Milk Production Line 1000L From A To Z Fully Automatic Type ISO Certified

UHT Milk Production Line 1000L From A To Z Fully Automatic Type ISO Certified

    • UHT Milk Production Line 1000L From A To Z Fully Automatic Type ISO Certified
    • UHT Milk Production Line 1000L From A To Z Fully Automatic Type ISO Certified
    • UHT Milk Production Line 1000L From A To Z Fully Automatic Type ISO Certified
  • UHT Milk Production Line 1000L From A To Z Fully Automatic Type ISO Certified

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: KAIQUAN
    Certification: ISO
    Model Number: KQLINE-1000LPH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Whole Set
    Price: 30000USD to 500000USD
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 35 to 60 days after get your advance payment
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 10 Whole Sets per month
    Contact Now
    Detailed Product Description
    Name: UHT Milk Processing Equipment Material: Sanitary Stainless Steel 304 / 316
    Flow: 500L/Hour-150000L/Hour Type: Full Automatic Type /Semi-automatic Type
    Drawing: Yes ,we Will Make After Confirmed Order Voltage /hz /phase: Make To Your Order
    Motor: ABB /Siemens /China Brand Specification: 20*10*15M
    HS Code: 84342000 Origin: Shanghai China

              Full Automatic Turnkey 1000L UHT Milk Processing Production Line From A to Z

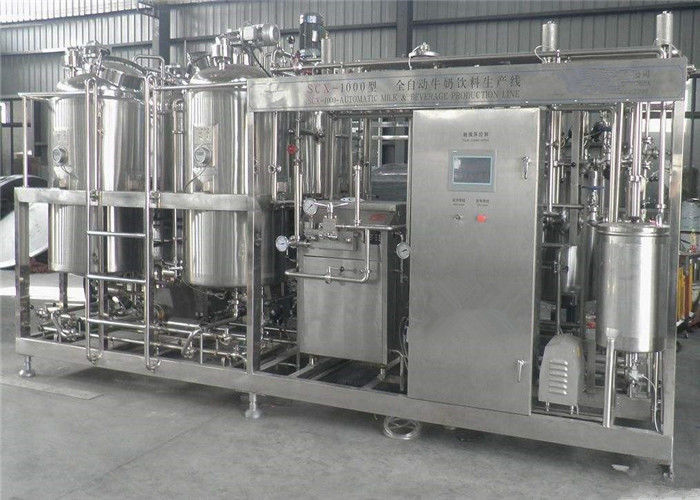

    1. The picture of our projects :



    2. Technical Parameter :



    I. Product Description:


    A. This Milk processing line produce several types of market milk products, i. E. Whole milk, skimmed milk and standardized milk of various fat contents.
    B. Raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.
    C. End product package of this Milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box, pre-pak pouches, paper cartons etc. For this Milk processing line according to different end product and package type, the production technology is differently designed.

    II. Related Items:


    1. Packing: By standard export plywood case(no vermin, germs)
    2. Payment: TT/LC/Western Union etc. Is acceptable
    3. Warranty: 1 year (For non-human damage factor)
    4. Port of loading: Shanghai, China (or named by clients)


    UHT Milk Production Line 1000L From A To Z Fully Automatic Type ISO Certified


    III. Hearty service:


    1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
    2. Operating video & instruction will be sent to clients, to help them better use the machines.
    3. Any problems occur while using, professional advice will be given by us.
    4. All kinds of frequently used parts are supplied from us all the year round.



    Milk processing line
    NO. NAME MAIN TECHNOLOGY PARAMETER Brand :KAIQUAN
    1 MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT
    2 electron pound scale maximum weighing 500KG
    3 milk weighing tank made of SUS stainless steal, single layer, product feeded in through 40 mesh filter net, CIP cleaning ball
    4 milk acceptor SUS304 stainless steel, single layer, CIP cleaning ball
    5 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
    6 twin piping filter SUS304 stainless steel, two pipe, Stainless Steal Filter Element 100 Mesh
    7 dish separator auto residue discharge

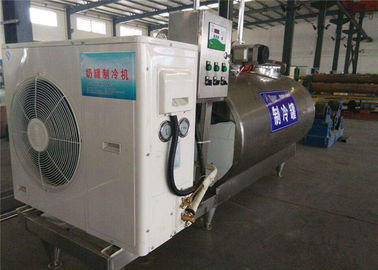

    8 chiling tank SUS304 stainless steel, alveolate jacket, attached with compressor
    9 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
    10 PREPARING UNIT
    11 blending tank SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
    12 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
    13 mini set of plate-type heat exchanger SUS304 stainless steel, two stages,
    14 high speed emulsification tank SUS304 stainless steel, heat insulated, bottom high speed emulsifier, digital readout thermometer, supporters with adjustable feet
    15 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
    16 twin piping filter SUS304 stainless steel, two pipe, Stainless Steal Filter Element 100 Mesh
    17 sterilizing, homogenizing unit
    18 UHT sterilizer tub-type, sterilzing temperature 137 C, holding time 4S, full automatic control

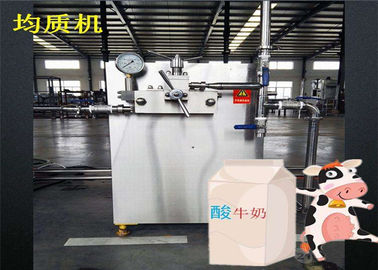

    19 high pressure homogenizer 40MPa, (starting box included)
    20 temperature holding SUS304, holding 300S
    21 distributing plate SUS304, 3 holes
    22 cheesebutter processing unit
    23 bufferying tank SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
    24 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
    25 cream seperator
    26 bufferying container SUS304, with cover
    27 milk pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
    28 butter-churner SUS304, stepless timing
    29 cheese vat SUS304, with heating jacket and insising device
    30 pressor SUS304, 6 heads
    31 mould SUS304, 10L, with cover
    32 yogurt fermentation unit
    33 fermentation tank SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
    34 rotary pump SUS304 stainless steel, Hard Alloy Mechanical Seal, manual stepless shift
    35 plate cooler SUS304, single stage, milk discharge at 4C
    36 rotary pump SUS304 stainless steel, Hard Alloy Mechanical Seal, manual stepless shift
    37 filling unit
    38 higher position tank SUS304 stainless steel, heat insulated, top off- center votical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feet
    39 pasteurized milk filling machine make to your order
    40 yogurt filling machine make to your order
    41 CIP system make to your order
    42 semi-auto CIP system outer coat of SUS304 stainless steel material, inner shell of SUS316, single cleaning way, Concentrated acid/alcali tank adding system based on US technology, 100L× 2 acid/alcali Concentrate tanks
    43 CIP return pump SUS304 stainless steel, pump lift 24M, Hard Alloy Mechanical Seal, Inner Shell Bright-Polished
    44 installation part whole milk processing line installation and commissioning
