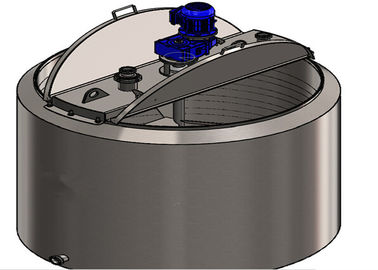

316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type

316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type

    • 316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type
    • 316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type
    • 316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type
  • 316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: Kaiquan
    Certification: ISO
    Model Number: KQ100L to KQ10000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: 2600USD /Set
    Packaging Details: Standard Export Wooden Box .
    Delivery Time: 20 days after get your advance payment
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 200 Sets per month
    Contact Now
    Detailed Product Description
    Name: 316 304 Stainless Steel Maturation Tank / Aging Tank Capacity: 100L To 30000L
    Material: Sanitary Stainless Steel 304 / 316 Cooling Method: Cooling By Ice Water .
    Application: Ice Cream Production Type: Jacketed Type
    Speed Of Mixer: 36RPM ,48RPM ,72RPM,2900RPM . Motor Brand: ABB / Siemens / Chinese Brand

                     316 304 Stainless Steel Maturation Tank Aging Tank For Ice Cream Mixing Tanks



    1. Maturation Tank and Aging Tank Instruction :

    Electirc steam heating jacketed milk pasteurizer aging Ice Cream mixing Tank

    The ice cream mixing aging tank can be heated of cooled according to technological requirements,electric heating are allowed .
    Made of food grade SUS304 or SUS316 stainless steel .The tank body and pipe are subjected to mirror polishing .
    The stainless steel electric control cabine can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed etc.

    Configuration of ice cream mixing tank:


    1. Quick open manhole.
    2. Various types of CIF cleaners.
    3. Thermometer (according to customer requirements).

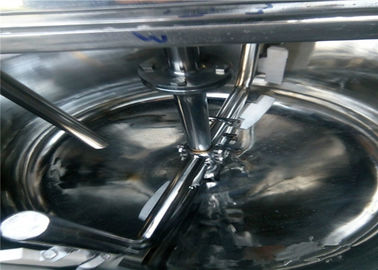

    4. Vertical blender (paddle type or fame type are available if customer require).
    5 Jacket (miller board, hollow jacket or coil pipe jacket are available according to customer requirements



    2. Technical Parameter :

    Model of ice cream mixing aging tank

    Volume 300L 400L 500L 600L 800L 1000L 1500L 2000L 3000L
    Body diameter(mm) Φ 800 Φ 800 Φ 900 Φ 1000 Φ 1000 Φ 1000 Φ 1200 Φ 1300 Φ 1600
    Body height(mm) 600 800 800 800 1000 1220 1220 1500 1500
    Motor power(kw) 0.55 0.55 0.55 0.55 0.55 0.75 1.5 2.2 3
    Stirring speed(rpm) 36r/min
    Working pressure ≤ 0.09Mpa
    Working temperature < 100° C
    Accessories Thermometer, safety valve, pressure gauge





    316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type

    316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type



    316 304 Stainless Steel Ice Cream Mixing Tank / Maturation Tank Jacketed Type
