Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks

Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks

    • Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks
    • Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks
    • Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks
  • Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: Kaiquan
    Certification: ISO
    Model Number: KQ 100L to KQ 8000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: 2000USD / Set
    Packaging Details: Standard Wooden Box
    Delivery Time: 15 Days after get your advance payment .
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Name: Single Double Wall Jacketed Mixing Tank Capacity: 100l To 8000L
    Material: Stainless Steel 304 / 316 Insulation: Polyurethane Foam
    Surface Treatment: Inside Mirror And Outside Polished Max Diameter: 2200mm
    Accessories: Level Meter Air Vent ,Valves ,Manway Packing: Wooden Box

          Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks

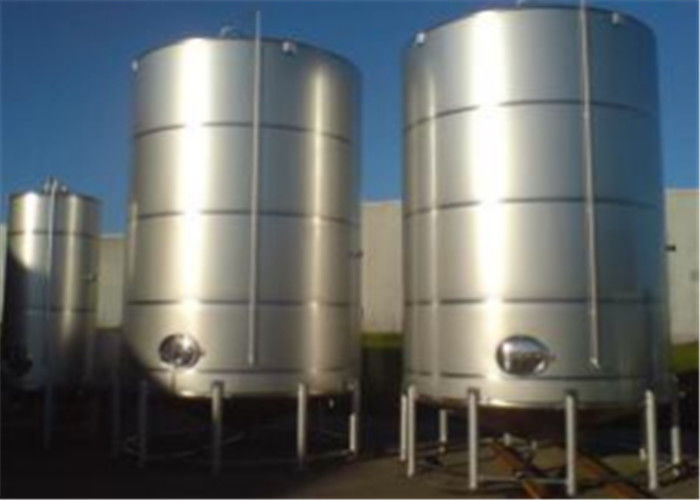

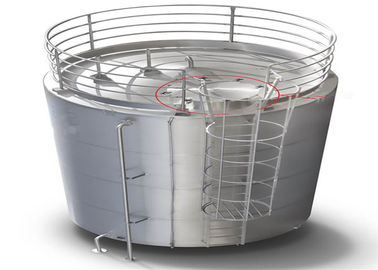

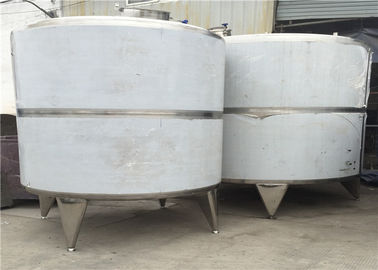

    1. Storage Tank Picture and Instruction :



    1. Joints adopt international general ISO package chuck, inner container adopts imported stainless steel SUS 304 or SUS316, internal surface polishing.


    2. All is in accordance with GMP Standards.



    Specification: 10L~30000L
    Material: SS316L or SS304
    Surface finish: Inside surface is Ra0.28~0.6μ M by mechanical Polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μ M by satin finish.
    Pressure: ATM or pressure vessel (-0.1~1Mpa)
    Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
    Jacket type: Dimple jacket, full jacket, or coil jacket
    Insulation material: Rock wool
    Components can be equipped as request:
    Standard components: Manhole or handhole, sight glass, cleaning ball
    Optional components:
    Vent filter with Pall cartridge or China brand cartridge
    Temp. Gauge, display on the gauge directly on the vessel
    Temp sensor PT100, digital display on the control cabinet by instrument
    Temp sensor with control for heating and cooling
    Level gauge with digital display on the control cabinet by instrument
    Load cell
    Valves
    Typical Application
    Wine, Beer
    Juices
    Food & Beverage
    Pharmaceutical
    Biotechnology & Laboratory
    Medical &Medical Device
    Chemical IndustryStainless Steel Single Double Wall Jackete Wall Buffer Tank Fermentation Tank



    2. Technical Parameter :



    Model
    Specification
    KQ-
    100
    KQ-
    200
    KQ-
    500
    KQ-
    1000
    KQ-
    1500
    KQ-
    2000
    KQ-
    2500
    KQ-
    3000
    KQ-
    4000
    KQ-
    5000
    Volume(L) 100 200 500 1000 1500 2000 2500 3000 4000 5000
    Nominal diameter(mm) 500 600 800 1000 1200 1200 1400 1400 1500 1600
    Nominal pressure in kettle(Mpa) 0.5
    Nominal pressure of jacket(Mpa) 0.250.6
    Motor power(kw) 1.1 1.5 2.2 4.0 4.0 4.0 5.5 5.5 5.5 7.5
    Rotation speed(r/min) 36   63   85     130   180



    Application:


    Used as liquid storage tank, temporary storage tank and water storage tank etc.
    Ideal in fields such as foods, dairy production, fruit juice beverages, pharmaceutical, chemical industry and biological engineering etc.

    Capacity: 200-50,000 liters

    Parameter:


    Type: Single layer, double layer
    Isolation material: rock wool, PU foam
    Sockets: manhole, inlet, outlet, cleaning ball, air vent, spare hole, etc
    Finish: Sanitary finish, without dead angles.

    Single Double Wall Jacketed Mixing Tank Stainless Steel Water Storage Tanks
    Material:
    All materials adopt stainless steel SUS304 or SUS316L. Internal surface is polished to Ra≤0.4μm and external surface has got surface polishing treatment, which is in accordance with GMP standard.
