    Product Details:

    Place of Origin: Shanghai China
    Brand Name: Kaiquan
    Certification: ISO
    Model Number: KQ 100L to KQ 15000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: 2000USD / Set
    Packaging Details: Standard Wooden Box
    Delivery Time: 20 Days after get your advance payment .
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Name: Stainless Steel Storage Tanks Capacity: 100l To 15000L
    Material: Stainless Steel 304 / 316 Insulation: Polyurethane Foam
    Surface Treatment: Inside Mirror And Outside Polished Max Diameter: 2200mm
    Accessories: Level Meter Air Vent ,Valves ,Manway Packing: Wooden Box

            High Quality Stainless Steel Reaction Fermentation Mixing Tanks Storage Tank

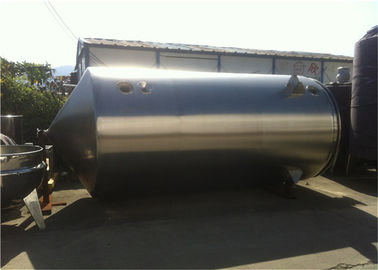

    1. Storage Tank Picture and Instruction :

    1. Joints adopt international general ISO package chuck, inner container adopts imported stainless steel SUS 304 or SUS316, internal surface polishing.



    Chemistry Storage Tank Stainless Steel Fermentation Tanks Heating Tanks


    2. Technical Parameter :


    Work Volume Dimension of tank Total height Insulated layer Diameter of inlet&outlet Motor Power Blending speed
    (L) (mmxmm) (mm) (mm) (mm) (kw) (r/min)
    500 840*1000 2300 60 38 0.75

    Rotating 20,35,50,

    100,500

    Stepless speed reducer or inverter reducer available

    600 920*1000 2400 60 38 0.75
    700 990*1000 2400 60 38 0.75
    800 950*1220 2550 60 38 0.75
    900 1010*1220 2700 60 38 0.75
    1000 1060*1220 2700 60 51 1.1
    2000 1340*1500 2750 60 51 2.2
    3000 1410*2000 3500 60 51 4
    5000 1910*2000 3850 60 51 5.5
    10000 2300*2440 4500 60 51 7.5
    15000 2530*3000 5200 60 51 7.5
    20000 2640*3660 5800 60 51



    Chemical Industry Stainless Steel Single Double Wall Jackete Wall Buffer Tank Fermentation Tank



    2. Technical Parameter :





    Model
    Specification
    KQ-
    100
    KQ-
    200
    KQ-
    500
    KQ-
    1000
    KQ-
    1500
    KQ-
    2000
    KQ-
    2500
    KQ-
    3000
    KQ-
    4000
    KQ-
    5000
    Volume(L) 100 200 500 1000 1500 2000 2500 3000 4000 5000
    Nominal diameter(mm) 500 600 800 1000 1200 1200 1400 1400 1500 1600
    Nominal pressure in kettle(Mpa) 0.5
    Nominal pressure of jacket(Mpa) 0.250.6
    Motor power(kw) 1.1 1.5 2.2 4.0 4.0 4.0 5.5 5.5 5.5 7.5
    Rotation speed(r/min) 36   63   85     130   180

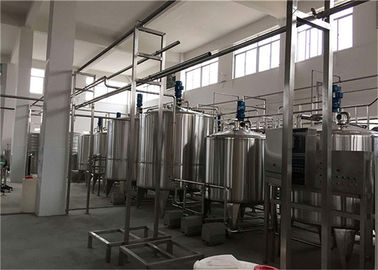

    3. Factory :

     Chemistry Storage Tank Stainless Steel Fermentation Tanks Heating Tanks

    Application:
    Used as liquid storage tank, temporary storage tank and water storage tank etc.
    Ideal in fields such as foods, dairy production, fruit juice beverages, pharmaceutical, chemical industry and biological engineering etc.
    Stainless Steel Juice Storage Mixing Tank Blending Vat Mixing Vessel With Mixer
    Capacity: 200-50,000 liters
    Big Large Capacity Stainless Steel Storage Mixing Tank For Food Industry
    Parameter:
    Type: Single layer, double layer
    Isolation material: rock wool, PU foam
    Sockets: manhole, inlet, outlet, cleaning ball, air vent, spare hole, etc
    Finish: Sanitary finish, without dead angles.
    Material:

    Chemistry Storage Tank Stainless Steel Fermentation Tanks Heating Tanks
    All materials adopt stainless steel SUS304 or SUS316L. Internal surface is polished to Ra≤0.4μm and external surface has got surface polishing treatment, which is in accordance with GMP standard.
