Professional Milk Production Line UHT Type Flavored Full Automatic For Dairy Cheese

Professional Milk Production Line UHT Type Flavored Full Automatic For Dairy Cheese

    • Professional Milk Production Line UHT Type Flavored Full Automatic For Dairy Cheese
    • Professional Milk Production Line UHT Type Flavored Full Automatic For Dairy Cheese
    • Professional Milk Production Line UHT Type Flavored Full Automatic For Dairy Cheese
  • Professional Milk Production Line UHT Type Flavored Full Automatic For Dairy Cheese

    Product Details:

    Place of Origin: China
    Brand Name: Kaiquan
    Certification: CE ,ISO .
    Model Number: KQ 500L KQ 1000L KQ 2000L KQ3000L

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Price: Negotiable
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 10 to 15 days
    Payment Terms: T/T, L/C
    Supply Ability: 20 Set / Month
    Contact Now
    Detailed Product Description
    Name: Dairy Processing Equipment Material: Sanitary Stainless Steel 304 / 316
    Flow: 500L/Hour -36000L /H Application: Milk ,Yogurt And Yogurt Production
    Turn Key Project: Yes Packing: Wooden Box Paper Box
    Origin: Shanghai China

              Long Life UHT Type Flavored Dairy Cheese Full Automatic Milk Production Line



    1. Instruction of milk :



    As a professional liquid food production line designer and manufacturer,we have more than 25years experience in this field,we can designing,manufacturing liquid production line and all kinds of filling machines,such as milk,yoghurt,juice,pure water,soft drink,ice cream,milk powder,etc.I believe that the high quality,competitive price of our products and our professional service will benefit you a lot.



    2. Technical Parameter :



    Equipment list DAIRY PRODUCTION plant
    (pasteurized milkyogurtcheesecreambutter)
    NO. NAME MAIN TECHNOLOGY PARAMETER
    1 MILK RECEIVESTORAGEAND CREAM SEPARETOR UNIT
    2 electron pound scale maximum weighing 500KG
    3 milk weighing tank made of SUS stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ball
    4 milk acceptor SUS304 stainless steel,single layer,CIP cleaning ball
    5 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
    6 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
    7 dish separator auto residue discharge
    8 chiling tank SUS304 stainless steel,alveolate jacket,attached with compressor
    9 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
    10 PREPARING UNIT
    11 blending tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
    12 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
    13 mini set of plate-type heat exchanger SUS304 stainless steel,two stages,
    14 high speed emulsification tank SUS304 stainless steel,heat insulated,bottom high speed emulsifier,digital readout thermometer,supporters with adjustable feet
    15 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
    16 twin piping filter SUS304 stainless steel,two pipe,Stainless Steal Filter Element 100 Mesh
    17 sterilizing,homogenizing unit
    18 UHT sterilizer tub-type,sterilzing temperature 137 C,holding time 4S,full automatic control
    19 high pressure homogenizer 40MPa,(starting box included)
    20 temperature holding SUS304,holding 300S
    21 distributing board SUS304,3 holes
    22 cheesebutter processing unit
    23 bufferying tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
    24 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
    25 cream seperator
    26 bufferying container SUS304,with cover
    27 milk pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
    28 butter-churner SUS304,stepless timing
    29 cheese vat SUS304,with heating jacket and insising device
    30 pressor SUS304,6 heads
    31 mould SUS304,10L,with cover
    32 yogurt fermentation unit
    33 fermentation tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet
    34 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
    35 plate cooler SUS304,single stage,milk discharge at 4degreeC
    36 rotary pump SUS304 stainless steel,Hard Alloy Mechanical Seal,manual stepless shift
    37 filling unit
    38 higher position tank SUS304 stainless steel,heat insulated,top off- center votical agitator,conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feet

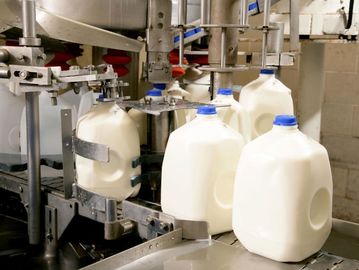

    39 pasteurized milk filling machine
    40 yogurt filling machine

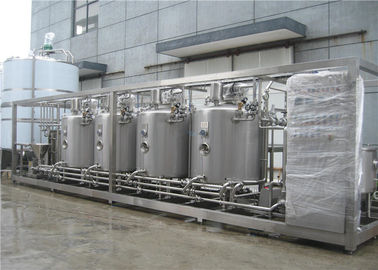

    41 CIP system
    42 semi-auto CIP system outer coat of SUS304 stainless steel material,inner shell of SUS316,single cleaning way,Concentrated acid/alcali tank adding system based on US technology, 100L×2 acid/alcali Concentrate tanks
    43 CIP return pump SUS304 stainless steel,pump lift 24M,Hard Alloy Mechanical Seal,Inner Shell Bright-Polished
    44 installation part project installation and commissioning



    3.

    Professional Milk Production Line UHT Type Flavored Full Automatic For Dairy Cheese

    The whole production line including the following machines:
    1.Water treatment system. This part including water filter and reverse osmosis puriffication system for pure water.
    2.Water supplying system. This part including constant pressure system,electric control system,water storage tank.
    3.Milk collection system. This part including the milk receiving tank,milk separator,filter,flowmeter,etc.
    4.Mixing system. This part including the plate heat exchanger,water-powder mixer,mixing tank,emulsifying tank.
    5.Sterilization system. This part including plate type sterilizer,high pressure homogenizer,300s warm holding tank.
    6.Fermentation system. This part including the seed tank,fermentation tank.

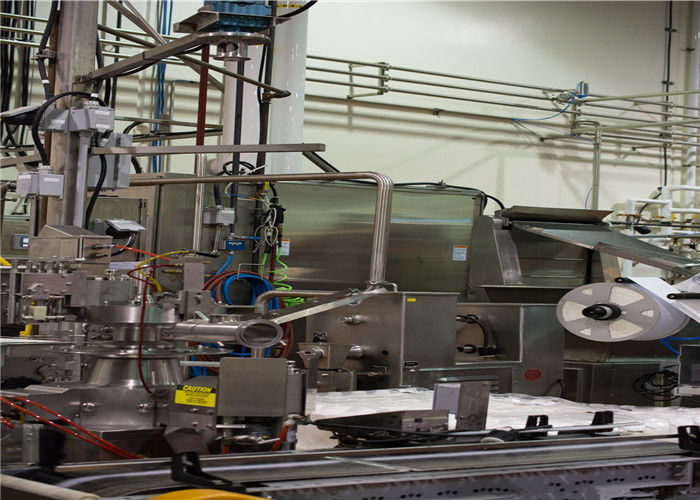

    7.Filling system. If your package is cup,this part including cup filling machine.
    If your package is bottle,this part including bottle filling machine,auto sleeve labeling machine,inkjet printer
    8.Low air compressed system. This part including the air compressor,air filter,air dryer,air storage tank.

    Consumer Notice.
    If you want to buy this yoghurt production line,please tell me your requirements.
    1.What is your raw material,fresh milk or milk powder?
    2.What is your production capacity?
    3.What is your package,carton,bottle,cup or other?
    Our engineer will make proposal based on your requirement .
    We are manufacturer,factory inspection is available all of the time.

    Why choosing us
    !High quality!
    Our machines are using world famous brand component.
    MITSUBISH PLC variable-frequency governor and OMRON optical switch from Japan
    SCHNEIDER electrical appliance components from Germany and France
    LG air switch,contactor and circuit breaker from South Korea
    SEMKRON control thyristors from German
    BOURNS potentiometer from America.
    !Professional after sale service!
    Our engineer will be available on site to guide installation and debugging.We also provide tree staff training.
    Further more,our after sale service department offering 24 hours 7 days service,we will quickly respond you once you have any question when using our machines.
