|Minimum Order Quantity:||1 Set|
|Price:||Negotiable based on capacity .|
|Packaging Details:||Standard Export Wooden Case|
|Delivery Time:||20 days after get your advance payment|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||1000 Sets / Month|
|Name:||Stainless Steel Beer Fermentation Tanks||Material:||Stainless Steel 304 / 316 / 316L|
|Application:||Beer Fermentation||Capacity:||500L To 10000L|
|Sight Glass:||Yes||Working Pressure:||0.1-0.2Mpa|
brewery fermentation tanks,
stainless steel wine tanks

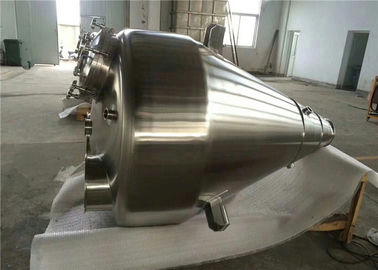

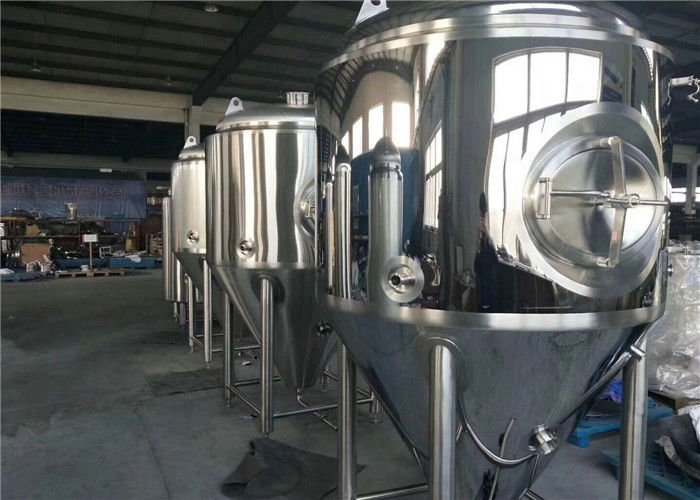

5000L Stainless Steel Beer Fermentation Tanks 1000l 2000L 3000L 4000L 6000L
Q: Can your brewing equipment make both lager and ale?
A: Yes, our beer brewing equipment can make both lager and ale.
Q: How to achieve temperature control?
A: The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor. The brewing tanks with rock wool to keep warm, the fermenters and bright beer tank with PU as cooling jacket to keep cool.
Q: Is it possible to supply installation in our country?
A: Yes, we could supply our clients over sea service and direct the installation and brewing.
Q. What type of control system?
A: Our control system is PLC control, also pass the CE.
Q. Do you arrange the shipping?
A: Yes, we can help you to book the shipping, also we will provide free insurance.
2. Technical Parameter :
|fermenter structure||dish top cover|
|60°-90° cone botton|
|dimple plate jacket for cooling|
|PU Foam insulation|
|polishing||mirror polished for interior surface 3A finished , RA≤0.22um|
|satin polished for exterior surface , 2B finished|
|conical fermenter manway||550mm*430mm elliptical manway , can be opened inwards & outwards|
|connect style||tri-clamp Nozzles on the tank|
|male- thread Nozzles for jacket|
|fermenter standard fitting||360°ratated CIP Spraying Ball*1|
|sample valve *1|
|temperature probe in thermowell *1|
|racking arm on cone *1|
|botton outlet *1|
|butterfly valve *2|
|optional fitting||carbonate stone|
|pressure relief valve|
|hops inlet on top|
3. Factory :
Contact Person: Ike Yuan
