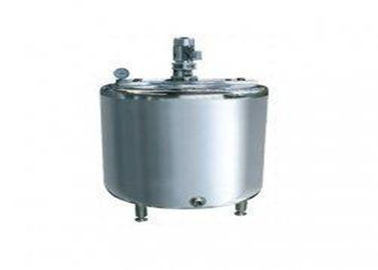

Ice Cream Processing Plant Heating Cooling Tank / Food Grade Stainless Steel Tanks

Ice Cream Processing Plant Heating Cooling Tank / Food Grade Stainless Steel Tanks

    • Ice Cream Processing Plant Heating Cooling Tank / Food Grade Stainless Steel Tanks
    • Ice Cream Processing Plant Heating Cooling Tank / Food Grade Stainless Steel Tanks
    • Ice Cream Processing Plant Heating Cooling Tank / Food Grade Stainless Steel Tanks
  • Ice Cream Processing Plant Heating Cooling Tank / Food Grade Stainless Steel Tanks

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: Kaiquan
    Certification: CE ISO
    Model Number: KQ Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 35 to 50 days after get your advance payment
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10 Set Per Month
    Contact Now
    Detailed Product Description
    Name: Sanitary Stainless Steel Tanks Material: Food Grade Stainless Steel 304 / 316
    Turnkey Project: Yes Flow: 500L/Hour - 15000L / Hour
    Customized: Yes Operation: Full Automatic
    Packing: Wooden Box HS: 847982

                   Heating Cooling Tank Ice Cream Tank Maturation Tank Production Line



    1. Brief Description:



    Milk Processing Tank Mixing Tank Milk Pasteurizer Ice Cream Tank is mainly used for stirring and storing milk, sugar, beverage, food, other elements and various drugs after mixing. Mixing tank, also known as mixing tank, mixing cylinder, hot and cold cylinder, bucket, storage tank, temporary tank, energy saving, corrosion resistance, strong production capacity, easy cleaning, simple structure, etc., mainly for dairy and Sugar and other elements and all kinds of drugs and then mix even after mixing, dairy, beverages, pharmaceuticals indispensable equipmen

    2. Classification:
    a. By heating method: electric heating, steam heating, cooling
    b. Single layer, PU insulation layer, jacket layer (Miller jacket and coil jacket)
    c. Stirring structure: top center stirring, top eccentric stirring, side stirring
    d. Open, sealed
    e. Volume: 100L-20000L

    3. Tank configuration (customized):

    1.Quick opening manhole
    2. Various types of CIP
    3. Anti butterfly and dirt air vent
    4. Tubular or triangular legs
    5.  Inlet and outlet valve
    6.  Thermometer
    7.  Ladder
    8.  Jacket (Miller jacket or hollow jacket)
    9.  PU insulation layer
    10. Mixer
    11. Level gauge and level controller
    12. Anti-vortex board
    13. Sanitary sample valve



    4. Technical Parameter :



    Work Volume Dimension of tank Total height Insulated layer Diameter of inlet&outlet Motor Power Blending speed
    (L) (mmxmm) (mm) (mm) (mm) (kw) (r/min)
    500 840*1000 2300 60 38 0.75 Rotating 18,36,48,
    72
    Stepless speed reducer or inverter reducer available
    600 920*1000 2400 60 38 0.75
    700 990*1000 2400 60 38 0.75
    800 950*1220 2550 60 38 0.75
    900 1010*1220 2700 60 38 0.75
    1000 1060*1220 2700 60 51 1.1
    2000 1340*1500 2750 60 51 2.2
    3000 1410*2000 3500 60 51 4
    5000 1910*2000 3850 60 51 5.5
    10000 2300*2440 4500 60 51 7.5
    15000 2530*3000 5200 60 51 7.5
    20000 2640*3660 5800 60 51 7.5
