Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine

Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine

    • Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine
    • Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine
    • Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine
  • Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine

    Product Details:

    Place of Origin: Shanghai China
    Brand Name: Kaiquan
    Certification: CE ISO
    Model Number: RGZ Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Standard Wooden Box
    Delivery Time: 20 to 35 days after get your advance payment
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 30 Set per month
    Contact Now
    Detailed Product Description
    Name: Automatic Bottle Washing Filling And Capping Machine Material: Sanitary Stainless Steel 304 / 316
    Bottle Material: Plastic & PVC Bottle: 150-2250ml
    Bottle /Hour: 3000-12000 Bottles /Hour Gas Source Pressure: 0.6Mpa
    Packing: Wooden Box Filling Principle: Atmospheric Pressure

                        Beverage Plastic PVC Bottle Washing Filling Caping For Milk Juice Industry

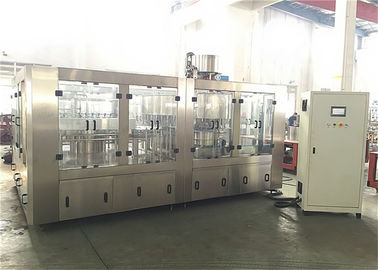

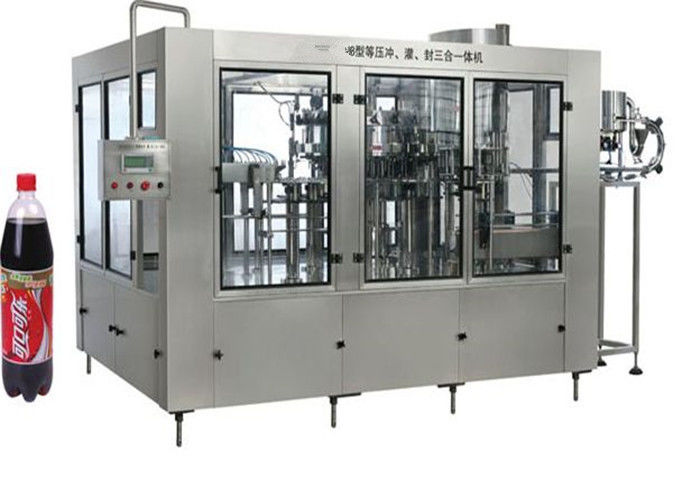

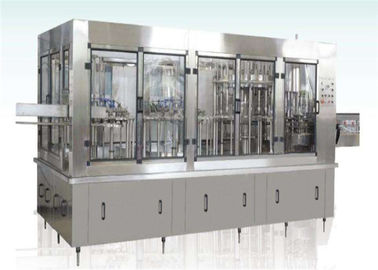

    1. Picture and instruction of the machine :

     Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine

    This series of equipment is used for the production of non-gas beverages such as fruit juice, fruit wine, mineral water and purified water in polyester bottles. It can be used for flushing, filling and capping in one machine.
    Introducing the latest technology from Japan and Italy, adopting the pressure-type constant-liquid filling principle, with high filling speed, stable liquid level control, and no leakage.
    Spring-type flushing pliers, the empty bottle is automatically rotated 180° along the track, flushed inside and outside, and the flushing bottle has high efficiency.
    The magnetic torque type capping head is used to realize the functions of capping and capping. Capping torque can be adjusted steplessly, with a constant torque screw cap function, and does not damage the cap, seal tight and reliable.

    Beverage Plastic Bottle Washing Filling Caping For Milk Juice Industry
    The whole machine adopts PLC computer program control and man-machine interface touch screen buttons, with automatic control of liquid level in material tank, no bottle filling, no bottle filling, no bottle without capping, etc. Digital display of production capacity, adjustment is extremely convenient.

    Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine

    2. Technical Parameter :

    Item  Model ZGF16-12-6 ZGF18-18-6 ZGF24-24-8 ZGF32-32-8
     1 Production Capacity(600ml)(b/h) 3000 5000 10000 12000
     2 Filling Precision ≥±5mm Liquid level
     3 Polyester Bottle Standard(mm) BottleDiameter∮50-∮100;Height :150-310
     4 Suitable Cap Shape Plastic Screw Cap
     5 Water Pressure of Washing Bottle(Mpa) 0.18
     6 Water Consumption for Water Bottle(Kg/h) 800 1600 2500 3500
     7 Spraying Position 5 5 6 12
     8 Dripping Bottle Position 3 3 3.5 7
     9  Gas Cource Pressure(Mpa) 0.4
     10 Gas Consumption(m3/min) 0.3 0.3 0.4 0.5
     11 Total Power(kW) 4.23 5.03 6.57 8.63
     12 Total Weight(Kg) 2500 3500 5500 8000
     13 Dimension(L×W×H)(mm) 2300×1550×2200 2350×1650×2200 3200×2100×2250 3500×2200×2250





     Plastic PVC Beverage Filling Machine / Automatic Washing Filling Capping Machine
