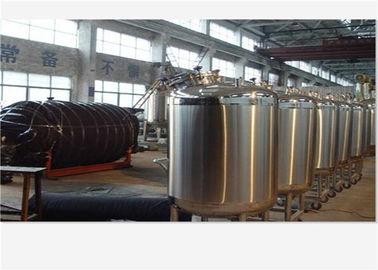

SUS316L / SUS304 Milk Mixing Tank Production Line Steam Heating Insulation OEM Available

SUS316L / SUS304 Milk Mixing Tank Production Line Steam Heating Insulation OEM Available

    • SUS316L / SUS304 Milk Mixing Tank Production Line Steam Heating Insulation OEM Available
    • SUS316L / SUS304 Milk Mixing Tank Production Line Steam Heating Insulation OEM Available
    • SUS316L / SUS304 Milk Mixing Tank Production Line Steam Heating Insulation OEM Available
  • SUS316L / SUS304 Milk Mixing Tank Production Line Steam Heating Insulation OEM Available

    Product Details:

    Certification: ISO ,CE , FDA
    Model Number: KQ Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: Negotiable
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 30 days after get your advance payment
    Payment Terms: T/T, L/C, Western Union, MoneyGram
    Supply Ability: 500 Set / Month
    Contact Now
    Detailed Product Description
    Name: Stainless Steel Milk Cooling Tank Material: Sanitary Stainless Steel 304 / 316 / 316L
    Capacity: 500L To 250000L Treatment: Inside Mirror And Outside Polished
    Insulation: Polyurethane Foam 50-80mm Motor: ABB Or Siemens
    Delivery: 20 Days After Get Your Advace Payment Origin: Shanghai China
    High Light:

    milk storage tank

    ,

    milk cooling tank

                 Sanitary Stainless Steel Steam Heating Insulation Milk Mixing Tank Production Line



    1. Introduction of Milk Mixing Tank :



    Summary:


    This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable storage equipment for them.You can have it made by SUS304, SUS316L stainless steel . It is reasonably designed, produced by advanced technology and confirm to GMP requirement.

    The inner surface of the tank can be mirror polished and the roughness can meet as high as Ra <=0.8 um. The outer surface is polished as follows: the cover and bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.
    Features:
    Material: SUS304 or S.S.316L
    Mixing type: anchor type, frame type or paddle type
    Mixing structure: cycloid pin wheel reducer or stepless reducer
    Sealing equipment: Mechanical sealing
    Heating way: steam heating, electrical heating or heat conduct oil.
    Volume: OEM
    Measure:OEM



    2. Technical Parameter :



    Volume
    50L

    100L

    200L

    300L

    400L

    500L

    600L

    800L

    1000L

    Caliber ( mm )

    Φ600

    Φ700

    Φ800

    Φ900

    Φ1000

    Φ1100

    Φ1200

    Φ1400

    Φ1500

    Kettle Height ( mm )

    400

    450

    580

    630

    680

    730

    780

    830

    900

    Heat Transfer Area ( m2 )

    0.45

    0.58

    1.12

    1.42

    1.75

    2

    2.3

    3.2

    3.9

    Heating Power ( kw )

    9

    9

    15

    18

    18

    24

    24

    27

    30

    Heat Transfer Oil ( L )

    30

    36

    45

    60

    70

    80

    100

    200

    250

    Working Pressure

    ≤0.09Mpa ( Adjustable )

    Stirring Rate

    36 r/min ( Adjustable )

    Stirring Power ( kw )

    0.55

    0.55

    0.75

    1.1

    1.1

    1.5

    1.5

    2.2

    2.2

    Stirring Motor Power ( kw )

    0.75

    0.75

    1.1

    1.5

    1.5

    2.2

    2.2

    3

    4
