Industrial Stainless Steel Butterfly Valves For Production Line Simple Structure

Product Details:

Certification:	ISO
Model Number:	DIN ,SMS ,ISO ,AAA .

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	negotiable
Packaging Details:	Standard Export Wooden Box
Delivery Time:	15 -20 days per month
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000 Set per month

Contact Now

Detailed Product Description

Name:	Industrial Butterfly Valves	Material:	Sanitary Stainless Steel
Specification:	1/2 -8"	Application:	Food Industry ,Chemistry ,Cosmestic
Surface Treatment:	Inside Mirror And Outside Polished	Connection:	Quick Install ,Welded , Thread ,Flange .
Pressure:	0.2Mpa =2Bar	Warranty:	One Year
Highlight:	sanitary stainless steel butterfly valves , electric actuated butterfly valve

2018 Sanitary Stainless Steel 304 316 Butterfly Valve For production line

Industrial Stainless Steel Butterfly Valves For Production Line Simple Structure 2018 Sanitary Stainless Steel 304 316 Butterfly Valve For production line

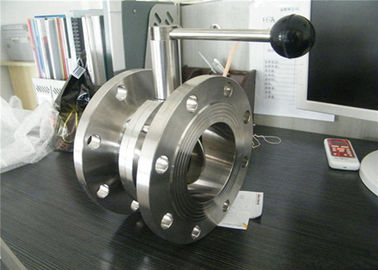

1. Butterfly Valve Picture :

Industrial Stainless Steel Butterfly Valves For Production Line Simple Structure

2. Introduction :

Food Grade Manual Stainless Steel Butterfly Valve (JN-BV1002)

Features:
Valve disc is made from forging.
Valve body is made from forging.
Pneumatic actuator: Stainless steel type (Single action type air /spring), Aluminium type (Double action type air/air)
Three type of actuator: Normally open(NO), normally closed(NC), Air/Air(A/A)
Gasket: EPDM, silicone or Viton
All gaskets are FDA approved
Max. Pressure: 16BAR for welding connections; 10BAR for other connections
Min. Pressure:0.2BAR
Compact design, easy maintenance and high torque

Max. Pressure is 16bar for but welded connection
Min. Pressure is 0.2bar
Easy installation and easy to control
Excellent in performance
Long service life
Thorough cleaning
Simple structure
Economic cost in purchasing and maintenance
Cost-efficient leakage protection
Hygienic exterior design
Forged body & forged disc design
Maximization the flow rate and low flow resistance
Large torque operation
Connection end: Weld, tri-clamped, union, flange,male threading, female threading
Standard: DIN, SMS, ISO, 3A, IDF
Material: SS304, SS316L
Inside surface finish: Ra0.4
Size: DN20-DN300 , 3/4"-10"
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries

Standard	DIN, SMS, ISO, 3A
Flow Medium Parts	304, 304L, 316L(1.4301, 1.4307, 1.4404)
Port Size	1"-8", DN25-DN200
Way of Connection	Weld, Male, Clamp, Flange
Gasket for butterfly valve	Silicone, EPDM, Viton, NBR
Application	It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc
Working principle	Remote-controlled operation by the driving gear or manual operation by handle.
Three drive forms	Normally closed, normally opened and opened and closed by two air flues seperately.
Handle	Metal handle, reinforced nylon handle
Handle	Adjustable handle, built to order according to users' request.
Advantage	1. Sanitary condition passed FDA Certification
	2. With strong resistance to acid, alkali and high temperature
	3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages
	4. Appearance desigh: Keep pace with international latest designs
	5. Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use

3. Technical parameter :

4. Packing :

We also supply sanitary butterfly valve, sanitary flow diversion valve, sanitary CPM valve, sanitary regulating control valve, sanitary diaphragm valve, sanitary ball valve, sanitary sampling valve, sanitary safety valve, sanitary pressure reducing valve

sanitary elbow, sanitary tee, sanitary reducers, sanitary unions, sanitary clamp, sanitary ferrule, sanitary pipe clamps,sanitary cleaning ball, sanitary sight glass, sanitary manway manhole cover, sanitary strainer, filters, and other sanitary pipe fittings....

Welcome to check our other products.

Quality guarantee of 3 years

ISO 9001, FDA, SGS approved materials

7-10 days fast delivery on urgent requirements

10 years' Rich exporting experience to make you easy and happy with custom work
