|Model Number:||3000L-25 3000 -40|
|Minimum Order Quantity:||1Set|
|Packaging Details:||Standard Wooden Box|
|Delivery Time:||20 days after get your advance payment|
|Payment Terms:||T/T, Western Union, L/C|
|Supply Ability:||1000 Set per month .|
|Name:||Milk Homogenizer Machine||Application:||Milk ,Juice ,Yogurt ,Ice Cream|
|Type:||Two Piston||Working Temperature:||≤95|
|Delivery:||20 Days After Get Your Advance Payment||Packing:||Wooden Box|
milk homogenizer machine,
two stage homogenizer
High Pressure Small Ice Cream Homogenizer Juice Homogenizer Milk Homogenizer
1. Instruction of Homogenizer :
High pressure homogenizer series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, highly presses the liquid, fully mixes and refines the material.
It is suitable for the homogenizing of liquid products whose viscosity is lower than 0.2Pa and whose temperature is lower than 95° C such as dairy, beverage, makeup, and medicine and so on. This equipment transports the processed material to homogenizing vale in high pressure way by triple plunger pump, making the material receive complex force such as turbulence, cavity, cut when the material flow past the little space between the valve plate and the valve seat to reach the purpose of emulsification and homogenizing.

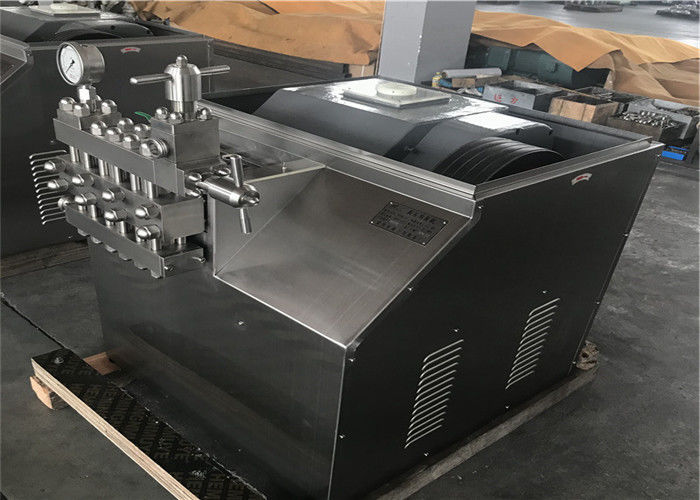

Structure of Homogenizer:
The stator works in concert with rotor, the working head (the stator and rotor forging manufacturing) is claw type structure, double suction and the shear efficiency is high.
3000L Ice Cream Homgenizer Milk Homogenizer For Dairy Industry CE Certificate
Usages of Homogenizer:
Application in biological medicine; Food industry; Day care; Coating printing ink; Nano-materials; Petroleum chemical; Printing and dyeing auxiliaries; Paper industry; Pesticide and fertilizer; Plastic rubber; Power electronics and other fine chemical industry.
2. Technical Parameter :
|Max Working Temperature ( ℃)||≤95|
|Feeding pipe diameter(mm)||32|
|Discharge pipe diameter(mm)||20|
|Power of motor(KW)||22|
|Volt and Electricity Flow||Make to your order|
|Outline dimension(m)Length * width * height||1.4×1.1×1.42|
|MATERIAL||Sanitary Stainless Steel 304|
Characteristics of Homogenizer
1. With high stability, low noise, easy clean, flexible advantages. It can be widely used in industrial production of emulsion, uniform and scattered.
2. Making the material refined mix under the triple action of crowding inquiry, strong impact and loss-pressure expansion.
3. For soybean milk and other kinds of dairy drink milk, under high pressure for homogeneous
4. It can improve the degree of fineness and loose, making its inherent quality obviously improved.
5. It can prevent or reduce material liquid to layered, improve the look of the material liquid effect, making its color brighter, fragrance thicker, tastes well.
