|Model Number:||KQ1000L , KQ2000L ,KQ3000L|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Export Wooden Box|
|Delivery Time:||15 to 20 days after get your advance payment|
|Payment Terms:||T/T, L/C, Western Union|
|Name:||Jacketed Stainless Steel Tank||Material:||Stainless Steel 316 /304|
|Type:||Jacketed & Food Grade||Tank Wall:||Inner Wall ,Jacketed Wall , Outside Wall|
|Motor:||0.55 To 7.5Kw||Pressure:||0.2Mpa|
milk storage tank,
milk cooling tank
Fruit Juice Processing Stainless Steel Milk Mixing Tank 1000L 2000L 3000L

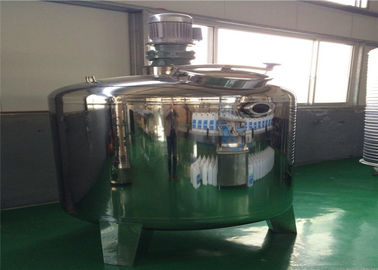

1. Tank Picture and Instruction :
sanitary juice liquid mixing tank stainless steel storage tank
sanitary juice liquid mixing tank stainless steel storage tank can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
Finish:Mirror or Matt Polish; Ra<0.4um
1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
2. Tank shell thickness:3mm at least (according to the design or your required)
3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
4. Design work temperature:-4~~+150C
5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
Certification: CE ISO9001:2000.
Have different kinds of agitators:
1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
2. Technical Parameter :
|cooling and heating tank with scraper agitator or with mixer|
3. Inside of the tank :
