|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Wooden box .|
|Delivery Time:||20 -25 days after get your advance payment|
|Supply Ability:||100 Set per Set|
|Name:||Milk Insulation Cooling Tank For Milk Factory||Material:||Sanitary Stainless Steel 304 / 316|
|Air Compressor:||Copeland (USA Brand )||Motor Brand:||Siemens / ABB /China Brand|
|Type:||Horizontal Type||Speed Of Mixer:||36RPM|
|Refrigerating Fluid (R):||404A/R22||Packing:||Wooden Box|
milk chiller tank,
stainless steel cooling tank
100L 15000L Stainless Steel Milk Insulation Cooling Tank For Milk Factory

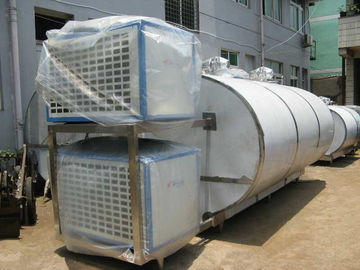

1. Milk Cooling Tank Picture :
Milk cooling storage pot is mainly used in preserving and storing fresh milk or other fresh liquid. It fully used the international advanced technology, adopts importing European Maneurop (non-fluorine) refrigerator and safety and protection system, imported advanced technique.
So it's the ideal cooling and storage equipment for pasture, milk station, milk factory, food factory, and beverage factory and pharmacy industry.
2. Tank part
Isolation material: PU foam
2. Cooling system
Refrigerant: R404A or R22
4. CHARACTERISTICS OF CONTROL CABINET:
A. Temperature Meter: Temperature show
B. Refrigerator control system set and the milk temperature adjustment.
C. Adjusts the Agitator for fully mixing up.
D. Function of the panel: Alarm for warning
4000L 6000L Powerfull Milk Chilling Cooling Tank Milk Cooler 2018
This system can cooling large area of the inside pot surface, utilizing the automatic computer control system to observe and operate, which can quickly lower the temperature to 4º Cand keep to this constant temperature, that prevent from the growth of the bacteria.
The refrigeration compressor unit are choose the excellent performance and energy-saving European "Maneurop" compressor, equipped with the creditable midpoint protector that will prevent the equipment from burn out caused by over loading or system fault. The heat preservation layer utilized the new technique of the anti-aging polyurethane blister, it owns the brilliant characteristics of heat insulations. The body of the Pot(vessel) make by the high quality stainless steel material 304 equipped with automatic cleaning ball and mixing system. Milk Cooling Tank .
2. Technical Parameter :
|Type||KQ-1000L(Horiztontal Type )|
|Material||Sanitary Stainless Steel304|
|Refrigerator Compressor Brand||Copeland (America Brand )|
The refrigeration system is designed with adequate capacity to chiIl the milk as per basic design parameter with multiple condensing units. Each condensing unit consists of the compressor, condenser, receiver, dryer, expansion valve, high-pressure cut out, low-pressure cut out, solenoid valve, sight glass, oil separator and other controls suitable for smooth operation of the plant. We offer related refrigerant pipes, fittings for interconnection of all refrigeration components. All refrigerant pipes will be properly clamped on fixed support and
sponge insulation for protection. There should have shut off valve both sides of compressor, receiver & dryer.
3. Factory :
