Certification: | CE ISO |
Model Number: | 10000-25 |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | 3500USD |
Packaging Details: | Standard Wooden Box |
Delivery Time: | 15 days after get your advance deposit |
Payment Terms: | T/T, Western Union, L/C, MoneyGram |
Supply Ability: | 1000 Set per month . |
Name: | Two Stage Homogenizer | Capacity: | 10000L |
---|---|---|---|
Application: | Milk ,Yogurt ,Cream ,Juice | Material: | Sanitary Stainless Steel 304 /316 |
Type: | Two Stage | Design Pressure: | 25Mpa |
Working Pressure: | First Stage 13 -15 Mpa ,Second Stage : 18-20 Mpa | Working Temperature: | ≤95C |
Packing: | Wooden Box | Dimension: | 1.16×0.9×1.24M |
Weight: | 1600Kg | ||
High Light: | milk homogenizer machine,ice cream homogenizer machine |
10000L Two Stage Large High Pressure Homogenizer For Dairy Industry

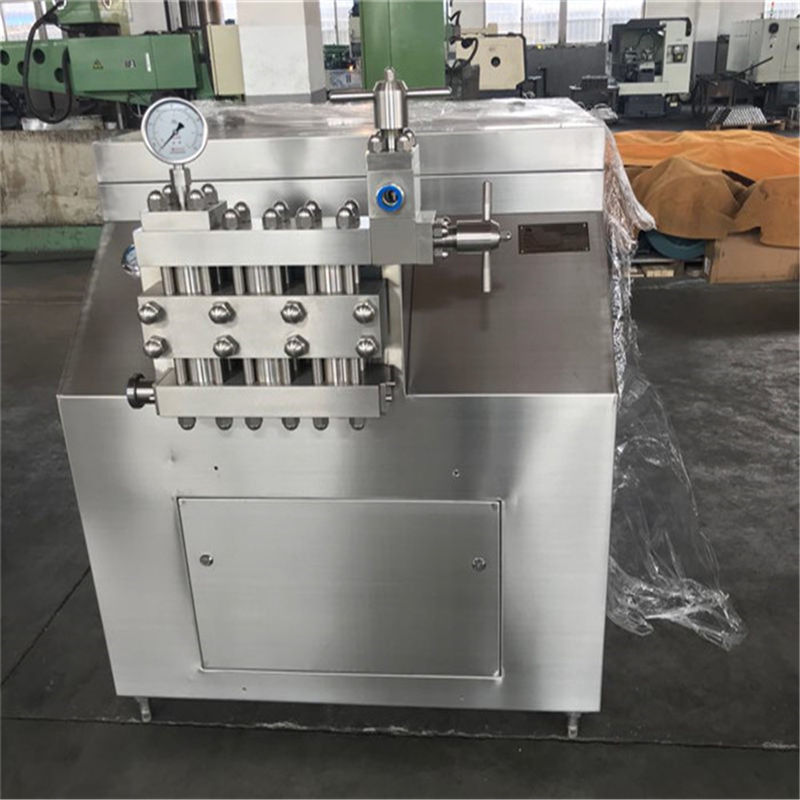

1. Products Picture :
High Pressure Milk Juice Cream Yogurt Homogenizer are high pressure pumps manufactured by Shanghai Kaiquan Machine Co.,Ltd with a veried range ,It model 2 comprises a homogenizing valve mounted to a pump block .It have a set of three suction valves and discharge valves which are postioned in opsite faces of the block .It has a pressure sensor which is attached to a discharge manifold through an isloated piston . It was widely used in Milk ,Juice and Beverage Industry .
2. Technical Parameter :
Product Description
The whole machine is covered by a stainless steel out-shell, the surface is clean and delicate,
multi homo-genic constructions are designed in the working valve, so, under the circumstance of same homo-genic effect, there are such advantages as power-saving and obviously effective. It is suitable for liquid-liauid emulsification manufacturing industry.
High pressure homogenizer is a special equipment of the liquid material thinning and high pressure
transportation.
This equipment is widely used in the production, scientific research and technical development of a
lot of areas, such as: food, dairy food, drink, pharmacy, chemical industry, biological technology and
so on.
Features
1, the machine installation valve material: ceramic ball (corrosion resistance)
2, valve seat material: alloy steel (corrosion resistance)
3, pressure gauges, diaphragm pressure gauge.
4, the plunger sealing ring: rectangular white circle.
5, the pump body adopts the split type (three storeys), which remove convenient, low maintenance cost, effectively prevent the pump body craze.
6, contact material parts, shell material: stainless steel 304
Rated flow(Liters/H) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 | 10000 |
Medium temperature(℃) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 | 50 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 | 40 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 | 75 |
Max Working Temperature (℃) | 95 | 95 | 95 | 95 | 95 | 95 | 95 | 95 |
Outline dimension (m) | 1.16×0.9 | 1.16×0.9 | 1.16×0.9 | 1.4×1.1 | 1.4×1.1 | 1.4×1.1 | 2.2×1.1 | 2.2×1.2 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 | 2.8 |
5000L Two Stage Four Plunger High Pressure Homogenizer For Milk

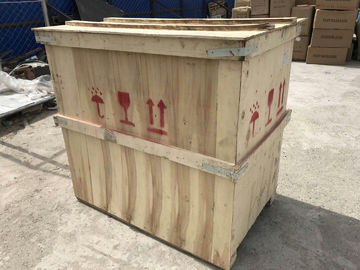

3. Factory & Packing :
This equipment can be used widely in production, research and technical development of food, juice, milk extract, drink, pharmacy, fine chemical, biotechnology and other field s.
Many kinds of material such as milk, bean milk or juice can be homogenized under high pressure to considerably thin the fat balls in the milk juice liquid, which makes the products be easy to be digested and absorbed, and improve the edibleness.
This equipment can be used in the production of ice cream to improve the thinness and fraction void of liquid material....
It also can be used in the production of emulsion, glue, fruit juice to avoid the or reduce the layering of the material liquid, improve the appearance of the material liquid, which can be more bright, fragrant and delicious.
The material liquid will be dried into powder by spray drying devices after thinning by homogenizers, so that homogenizers are main devices in powder production.
10000L Two Stage Large High Pressure Homogenizer For Dairy Industry
