Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25

Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25

    • Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25
    • Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25
    • Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25
  • Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25

    Product Details:

    Certification: CE
    Model Number: GJB3-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 6900USD/Set
    Packaging Details: Standard Export Wooden Box .
    Delivery Time: 15 to 25 days after get your advance payment
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 400 Set / Per Year
    Contact Now
    Detailed Product Description
    Name: Ice Cream Homogenizer Machine Model: GJB 2-25
    Capacity: 2000L/Hour Motor: ABB / Siemens / China Brand
    Working Temperature: ≤95C Inlet /Outlet: 25mm /20 Mm
    Dimension: 1.4×1.1×1.42m Weight: 1250Kg
    High Light:

    two stage homogenizer

    ,

    ice cream homogenizer machine

    China High Pressure 3000L Soymilk Big Scale Homogenizer (GJB 3-25)

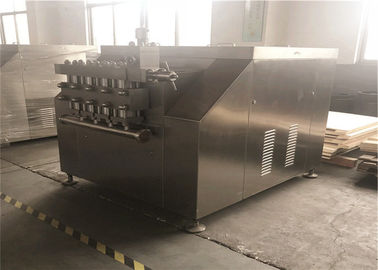

    1. Homogenizer Picture and Instruction :



    Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25

    1- Lubricate system
      Lubricate system which is both squirting and splash uses soft plastic pipes that can bear high pressure and oil. The oil can keep stable temperature at the same producing condition, so it brings excellent lubricate effect. The recycle cooling system reduces driving box's temperature and lubrication waste.
    2- Driving box
      The eccentric shaft is made of special alloy steel which is wear-resisting and has long using life. The half construction is easy to maintain and be knocked down. Driving and eccentric shafts are drive by v-model gears which have following advantage: low noise and good stability.
    3- Wear parts
      Homogenizing valve, one-way valve and piston are made of special alloy steel, with high impact resisting corrosion-resisting. This material is applicable to any CIP's corrosion-resisting. In special condition homogenizing and oneway valves can be made of alloy steel which has same function. All kinds of sealing material have following advantage: wear-resisting, non-toxic, pressure-resisting and long life. It is easy and convenient to change wearing parts, especially it is no need to take off pump during changing pistons and sealing rings.
    4- Pump construction
      The square high pressure covers on the pump have high intensity and excellent sealing function. The tighten nuts with lids have nice out looking. The material gate is according to food sanitation and pharmacy standards. Out-in parts take adjustable tie-in which is easy and convenient to be taken off and fixed.
    5- Type
      Our homogenizes advantage is good stability and easy to operate, maintain and repair.
    6- Saving energy
      Our homogenizers arebased on low energy waste and high efficiency designing, which has clear effect at the same producing condition.



    2. Technical Parameter :

    Model No.

    Technical

    parameter



    GJB2-25

    Rated pressure(Bar) 250
    Rated flow(Litres/h) 2000
    Medium temperature() ≤85
    Feeding pipe diameter(mm) 25
    Discharge pipe diameter(mm) 20
    Power of motor(KW) 15
    Volt and Electricity Flow 380V/50Hz/3Phase
    Outline dimension(m)Length * width * height 1.4×1.1×1.42
    MATERIAL Sanitary Stainless Steel 304
    Weight(Ton) 1.25

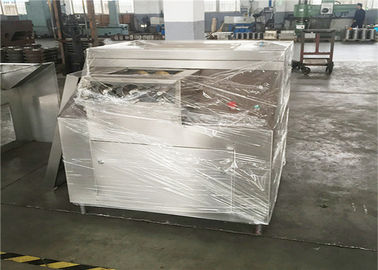

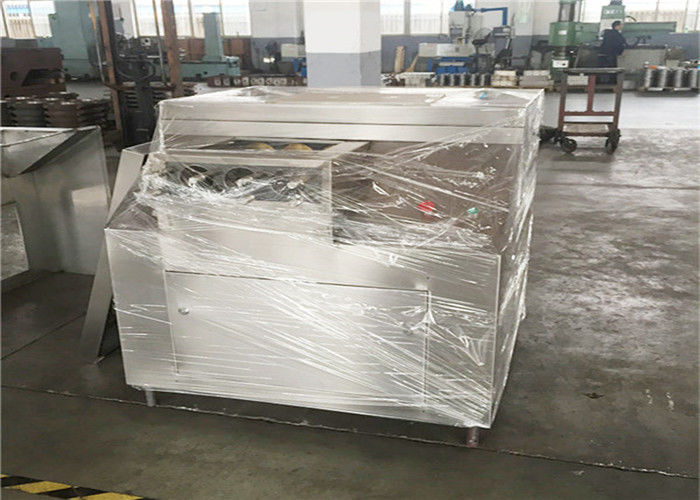

    3. Factory and Packing



     Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25

    Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25

     Kaiquan 3000L Soy Milk Homogenizer Machine / Big Scale Homogenizer GJB 3-25


    Introduction:

    Pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.

    Application

    It is widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development.
    1) For milk,soybean milk,could make fat globule thin observably,make it easy to assimilate.It is good to increase the edible value.
    2) For ice cream,make the liquid fine and loosen and improve internal quality.
    3) For emulsion,colloid,juice,serosity,could avoid and decrease the separated layers of liquid material,improve the appearance of liquid material,and make it identical coloury liquid.
    4) As transportation pump usage
    It will come into high pressure by our machine.Powder will be made by dryness equipment.Our machine is important process of manufactorying powder.

    China High Pressure 3000L Soymilk Big Scale Homogenizer (GJB 3-25)
