| Certification: | SGS ,ISO |
| Model Number: | KQ ,OEM |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 20 Days after get your advance payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 Set Per Month |
| Name: | Heated Stainless Steel Tank | Material: | Stainless Steel 304 / 316 / 316L |
|---|---|---|---|
| Capacity: | 100L To 30000L | Heating: | Steam Heating / Electric Heating |
| Motor: | ABB / SEW / SIEMENS | Surface Treatment: | Inside Mirror And Outside Polished |
| Accessory: | Level Meter , Air Vent , CIP Ball ,Thermometer , Pressure Guage | Cleaning: | CIP Cleaning Ball |
| Highlight: | liquid storage tanks,juice mixing tank |
||
304 316 Stainless Steel Liquid Jacketed Heating Mixing Tank For Milk Production
1. Introduction of Liquid Mixing Tank :
Tank Part:
Material :Sanitary Stainless Steel 304
* Type: with Jacket and insulation
* Internal shell thickness: 3 mm (SS304)
* Jacket thickness: 3 mm (SS304)
*PU Insulation wall:50mm
*Outer shell thickness: 1.5mm (SS304)

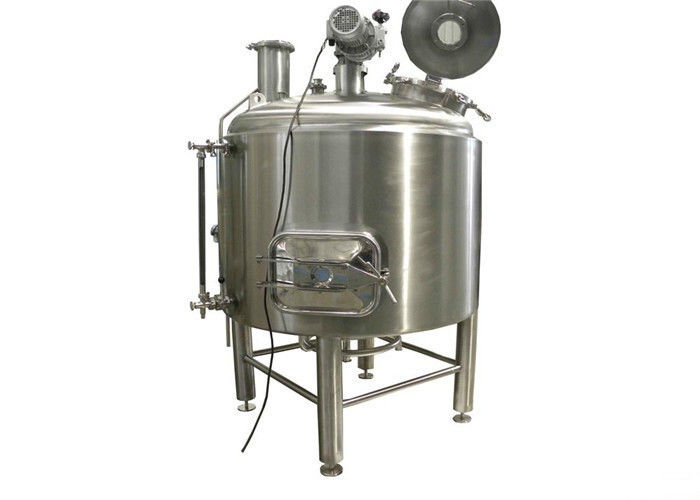

* Appearance: Tank will be like the right tank picture
Tank picture is for ref
* Accessories included:
(1) Manhole
(2) Auto CIP Cleaning Ball

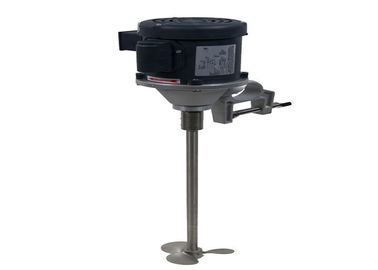

(3) Motor & Gear Box
(4) Mixing System
(5) Heating Transfer Oil Inlet /Outlet
(6) Material Inlet /Outlet
(7) Electricity Control Box
(8) Electric Heating Bar
(9) Thermometer
(10) Legs
(11) Name Plate
2. Technical Parameter :
| Tank Capacity(L) | 1000L |
| Application | Milk Industry |
| Material | Food Grade Stainless Steel 304 |
| Surface Treatment | Inside Mirror and Outside Polished |
| Motor Brand | Siemens |
| Electric Control Panel | Yes |
| Voltage /Hz /Phase | Make to your order . |
| REV | 36r/min |
| Electric motor of the agitator | 1.1KW, Voltage ,make to your order . |
| The Max Working Temperature of Heating Transfer Oil | 220 ℃ |
| Max Working Temperature | 180 ℃ |
| Electric heating tube power | 48KW, |
| Heating Area(M2) | 4.5 |
| Content Input / Output(DN MM) | 38 |
| Dimension (L*W*H)MM | 1400*1400*1750 |
| Gross Weight (KGS) | 350 |
