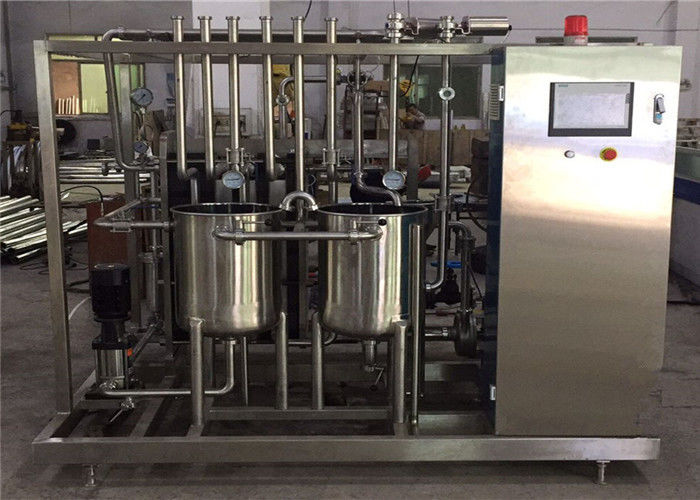

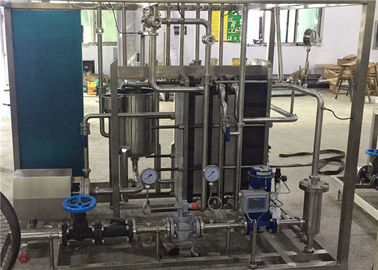

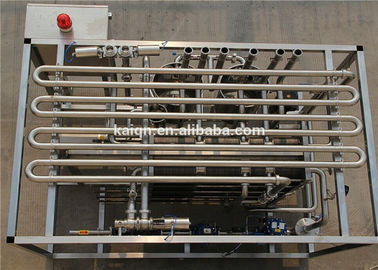

2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant

Product Details:

Certification:	ISO
Model Number:	2000L

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Standard Wooden Box
Delivery Time:	35 days after get your advance deposit
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	100 Set /Year

Contact Now

Detailed Product Description

Name:	Juice Pasteurization Machine	Material:	Sanitary Stainless Steel 304 / 316
Application:	Eggs Pasteurization	Inlet Temperature:	20 -65C
Sterilization Temperature:	115-135C	Holding Time:	5Seg-30 Seg
Outlet Temperature:	20C-65C	Type:	Full Automatic With PLC
Packing:	Wooden Box	Warranty:	One Year
High Light:	milk sterilizer machine , uht pasteurization equipment

2000LPH Automatic Milk Fruit Juice UHT Flash Pasteurizer Plate Sterilizer

1. Technical Parameter :

Automatic tubular UHT is developed according to the technical requirement of juice filling line. It connects UHT and 3-in-1 monoblock directly.

UHT, Pasteurizer for Juice, Flavoured Milk, hot filling drinks Pasteurizer for Juice, Flavoured Milk, hot filling drinks Working Parameters:

Material entry temperature: Under 30° C.

Sterilizing temperature and keeping time: 137± 1° C, 5~30 seconds

Material out temperature: 25~90° C (according to the need)

Equiipment Information:

Sterilizing material: Flavour milk, tea, juice

2. Technical Parameter :

Name		KQ-PUT-15	KQ-PUT-20	KQ-PUT-25	KQ-PUT-30	KQ-PUT-55	KQ-PUT-105
production capacity	t/h	2	3	4	5	10	20
heat exchanging area	m2	15	20	25	30	55	105
temperature of material inlet	°C	5	5	5	5	5	5
temperature of material outlet	°C	5	5	5	5	5	5
sterilizing temperature	°C	85-95	85-95	85-95	85-95	85-95	85-95
heat preservation period	S	15	15	15	15	15	15
ice water consumption	multiple	3	3	3	3	2	2
cooling water consumption	multiple	2	2	2	2	2	2
energy consumption	kw	10	10	12	14	16	20
outline dimensions	mm	350019001880	350019001880	450019501880	450020001880	650020001880	6500*20

4. Application :

2000LPH Automatic Milk Pasteurization Machine / UHT Milk Processing Plant

Tag:

milk sterilizer machine,

uht pasteurization equipment
