| Certification: | ISO |
| Model Number: | KQ 1000L ,KQ 2000L ,KQ 3000L ,KQ 5000L |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wooden Box |
| Delivery Time: | 20 to 30 days after get your advance payment |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 25 days after get your advance payment . |
| Name: | UHT Milk Processing Machine | Material: | Stainless Steel 304 / 316 |
|---|---|---|---|
| Inlet Temperature: | 20C -65C | Sterilization Temerpature: | 110 To 135C |
| Holding Time: | 5 To 30seconds | Outlet Temperature: | 20C -65C |
| Application: | Milk ,Juice , Water ,Tea | Warranty: | One Year |
| Packing: | Wooden Case | Origin: | Shanghai China |
| High Light: | milk sterilizer machine,flash pasteurization machine |
||
Automatic Milk UHT Pipe in Pipe Sterilizer With PLC Finger Touch Screen

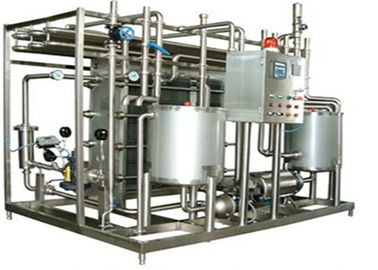

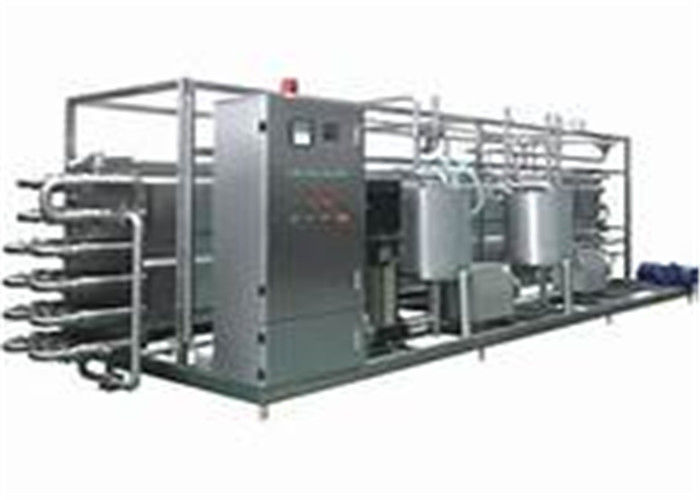

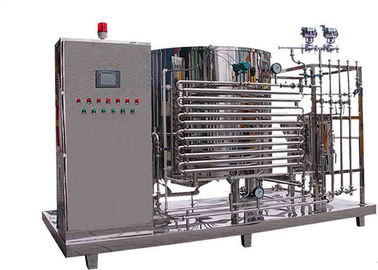

1. UHT Sterilizer Picture and Instruction :
2. Technical Parameter :
| Model | KQ-UHT-1.5 | KQ-UHT-3 | KQ-UHT-5 |
| Capacity(L/H) | 1500 | 3000 | 5000 |
| Inlet temp.(ºC) | 25-40 | 25-40 | 25-40 |
| Temp. Holding duration(S) | 120-180 | 120-180 | 120-180 |
| Sterilization temp.(ºC) | 95~121 | 95~121 | 95~121 |
| Outlet temp.(ºC) | 25-35 | 25-35 | 25-35 |
| Steam Pressure(MPa) | 0.5 | 0.5 | 0.5 |
| Steam Consumption(Kg) | 150 | 210 | 280 |
| Compressed air pressure(MPa) | 0.6 | 0.6 | 0.6 |
| Compressed air consumption(L/H) | 50 | 50 | 60 |
| Dimension(L×W×H)mm | 7000×2000×2000 | 7000×3000×2200 | 7000×4000×2400 |
| Weight(Kg) | 1700 | 2000 | 2200 |
| Dimension | 7000mmx2200mmx2500mm |
| Power | 25kw |
| Processing capacity | 1000KG/H |
| Sterilizing temperature | 108° |
| Sterilizing time | 105S |
| Steam consumption | 200kg/hour |
| NO. | Accessory | Brand |
| 1 | PLC | Siemens (Germany) |
| 2 | Human Machine Interface | Siemens(Germany) |
| 3 | Valves | SpiraxSarco (Britain) |
| 4 | Electric Elements | Schneider (France) |
| 5 | Central Relay | Omron (Japan) |
| 6 | Transducer | Fujifilm (Japan) |
Related machinery of fruit processing line
Fruit storage silo-- Washing, sorting machine-- Grading/classifier machine
Squeeze extractor--Juice refiner-separator-evaporator-- Juice concentrate product
Fruit flesh/pulp collector-sterilizer--filling machine-fruit flesh
Essential oil refiner-fruit oil
Fruit residues collector-animal feed
Soaking extraction, pre-cooking, pulping, quick freeze, stemmer, ultra-filtration, decolor, destoner, crusher, stone washer, brusher washer, pine apple extractor, refiner, enzymolysis, filtration, CIP cleaning system
Related machinery of dairy(cheese, butter, milk, yoghurt,cream) processing line
Large outdoor storage tank, agitator tank, jacket tank, ferment growing tank, emulsification tank, milk weighing, milk receiving/collecting, extracting, pasteurizer yoghurt, UHT, HTST pasteurizer, plate pasteurizer, tubular UHT sterilizer, spraying type pasteurization, cooling tunnel, bottle tilting sterilization chain, CIP cleaning system, full-auto CIP, semi-auto CIP, evaporator, curd cutting, whey draining, cheese making, scalding/stretching/molding, cheese vat, mozzarella cheese, cheddar cheese, blending system, pre-pasteurization, cream separator system, powder melting, dissolving system, homogenizer system, turn-key project.
