Certification: | ISO |
Model Number: | 1000L |
Minimum Order Quantity: | 1Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Wooden Box |
Delivery Time: | 35 days after get your advance deposit |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 100 Set /Year |
Name: | Milk Pasteurization Machine | Material: | Sanitary Stainless Steel 304 / 316 |
---|---|---|---|
Inlet Temperature: | 20 -65C | Sterilization Temperature: | 115-135C |
Holding Time: | 5Seg-30 Seg | Outlet Temperature: | 20C-65C |
Type: | Full Automatic With PLC | Packing: | Wooden Box |
High Light: | milk sterilizer machine,flash pasteurization machine |
Milk Flash Pasteurization Machine UHT Tubular Sterilizer With PLC Screen
(Technical Book will be available !!! )
1. UHT Sterilizer Picture :
2. Technical Parameter :
|
|||||||||||||||
No. | Main List | Specifications | Qty | Manufacturer | Remark | ||||||||||
1 | Heat Exchanger | KQ-UHT-75 | 1 | Our company | |||||||||||
2 | Steam& water mixer | 1 | Our company | ||||||||||||
3 | Balanced barrel | 100L | 1 | Our company | |||||||||||
4 | Hot water barrel | 100L | 1 | Our company | |||||||||||
5 | Centrifugal beverage pump | 20t 50m | 1 | Our company | |||||||||||
6 | Hot water pump | CDLF4-70 | 1 | Nanfang | |||||||||||
7 |
pneumatic valve |
¢38 | 1 | Yuanan(Shanghai) | |||||||||||
8 | Butterfly valves | ¢38 | 5 | Made in China | |||||||||||
9 | Hot water ball valve | ¢51 | 2 | Made in China | |||||||||||
10 | Steam pipe | DN40 | Made in China | ||||||||||||
Steam flow control valve | LE33 EP5 DN32 | 1 | Ruilong | ||||||||||||
Steam Pressure reducing valve | 25P DN32 | 1 | Made in Japan | ||||||||||||
Steam plunger-type valves | DN32 | 1 | China | ||||||||||||
Steam filter | DN32 | 1 | China | ||||||||||||
Pressure gauge | ¢100 | 2 | China | ||||||||||||
11 | Electric control box | 304 | 1 | Our company | |||||||||||
PLC and processor | 1 | Simens | |||||||||||||
Electric component | 1 | Chint | |||||||||||||
Automatic temperature record | 1 | Dahua | |||||||||||||
12 | Temperature sensor | Pt100 | 4 | Made in Japan | |||||||||||
13 | Frame and pipes | 304 | 1 | Our company |

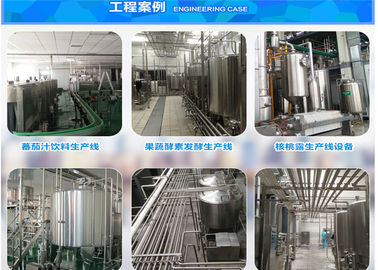

4. Application :
1000 LPH 2000L LPH Egg Flash Pasteurization Equipment With PLC Screen
