Reliable UHT Sterilization Machine 5000 LPH Easy Install For Milk Yogurt


               5000LPH Milk Yogurt Tubular Flash UHT Pasteurizer Sterilizer With PLC
                              (Technical Book will be available !!! )

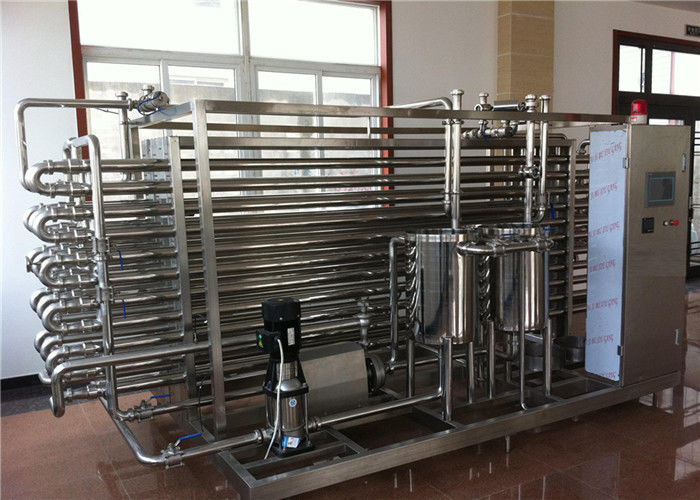

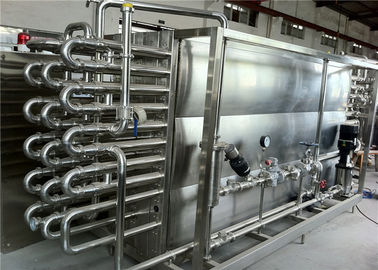

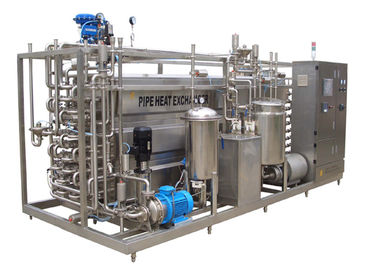

1. UHT Sterilizer Picture :



2. Technical Parameter :

The machine has characteristics such as compact structure, effective sterilization, convenient operation, wide adaptation, low cost and so on.According to users' needs, it can be supplied separately UHT sterilization system, including tube-type sterilizing machine, preheating tank, and insulation tank, the homogenizer interfaces can prevent formatting milk stone, with the pasteurization function.It can also available the entire unit, including UHT sterilizing system and flash degassing system.

Usage
It's widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.


4.  Application :
Product Description:
1. Usage: Pipe sterilizer can take hot process on the dairy production, liquid foods beverage, concentrate jam, biology, medicine etc. Sterilizer of other model.
2. Main structure: Material tanks, sterilizer tank, material pump, exheater, hot water cross occur, controller etc.
3. Control system: PLC controller, touch screen operating, frequency conversion timing, PID temperature controller.
4. Working principle: Pre-sterilizing, sterilizing for the pipe which material will touch, use the hot water cycle in the pipe, more than 20 min, then lower the pipe temp., starting sterilizing for the material. The material which had disposal to the material tank, use the pump sending to pipe heat exchanger. Then put the material into heater pipe and sterilizing according to require time, and after sterilizing to the keeping pipe, then into the cooling pipe and sending to the filling machine.Hot sale plate&tube ultraviolet sterilizer
