Milk Homogeniser Machine , Two Stage Homogenizer 25Mpa 40 Mpa 5000L -25

Milk Homogeniser Machine , Two Stage Homogenizer 25Mpa 40 Mpa 5000L -25

    • Milk Homogeniser Machine , Two Stage Homogenizer 25Mpa 40 Mpa 5000L -25
    • Milk Homogeniser Machine , Two Stage Homogenizer 25Mpa 40 Mpa 5000L -25
    • Milk Homogeniser Machine , Two Stage Homogenizer 25Mpa 40 Mpa 5000L -25
  • Milk Homogeniser Machine , Two Stage Homogenizer 25Mpa 40 Mpa 5000L -25

    Product Details:

    Certification: CE
    Model Number: 5000-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 3000USD
    Packaging Details: Standard Wooden Box
    Delivery Time: 15 days after get your advance deposit
    Payment Terms: T/T, Western Union, L/C, MoneyGram
    Supply Ability: 1000 Set per month .
    Contact Now
    Detailed Product Description
    Name: Juice Homogenizer Machine Application: Milk ,Yogurt ,Cream ,Juice
    Type: Two Stage Design Pressure: 25Mpa
    Working Pressure: First Stage 13 -15 Mpa ,Second Stage : 18-20 Mpa Working Temperature: ≤95C
    Packing: Wooden Box Dimension: 1.16×0.9×1.24M
    Weight: 450Kg
    High Light:

    milk homogenizer machine

    ,

    two stage homogenizer

                            25Mpa 40Mpa Juice Milk High Pressure Homogenizer Juice Cream Homogenizer

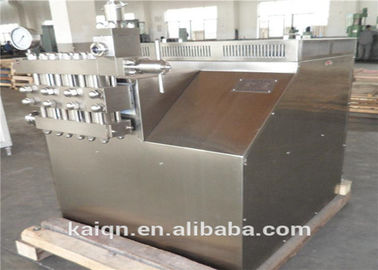

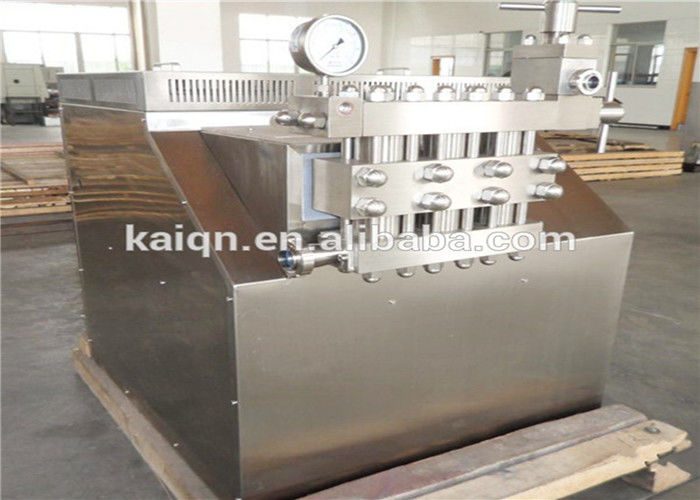

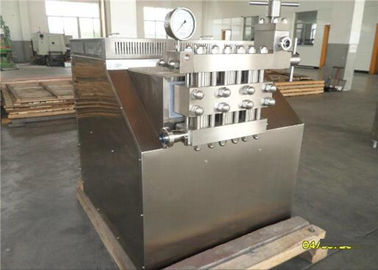

    1. Products Picture :
      High Pressure Milk Juice Cream Yogurt Homogenizer are high pressure pumps manufactured by Shanghai Kaiquan Machine Co.,Ltd with a veried range ,It model 2 comprises a homogenizing valve mounted to a pump block .It have a set of three suction valves and discharge valves which are postioned in opsite faces of the block .It has a pressure sensor which is attached to a discharge manifold through an isloated piston . It was widely used in Milk ,Juice and Beverage Industry .
     Milk Homogeniser Machine , Two Stage Homogenizer 25Mpa 40 Mpa 5000L -25
    2. Technical Parameter :
      Product Description
    The whole machine is covered by a stainless steel out-shell, the surface is clean and delicate,
    multi homo-genic constructions are designed in the working valve, so, under the circumstance of same homo-genic effect, there are such advantages as power-saving and obviously effective. It is suitable for liquid-liauid emulsification manufacturing industry.
    High pressure homogenizer is a special equipment of the liquid material thinning and high pressure
    transportation.
    This equipment is widely used in the production, scientific research and technical development of a
    lot of areas, such as: food, dairy food, drink, pharmacy, chemical industry, biological technology and
    so on.
    Features
    1, the machine installation valve material: ceramic ball (corrosion resistance)
    2, valve seat material: alloy steel (corrosion resistance)
    3, pressure gauges, diaphragm pressure gauge.
    4, the plunger sealing ring: rectangular white circle.
    5, the pump body adopts the split type (three storeys), which remove convenient, low maintenance cost, effectively prevent the pump body craze.
    6, contact material parts, shell material: stainless steel 304

    Rated flow(Liters/H)50010001500200025003000500010000
    Medium temperature()≤85≤85≤85≤85≤85≤85≤85≤85
    Feeding pipe diameter(mm)2525252525324050
    Discharge pipe diameter(mm)1515202020202540
    Power of motor(Kw)5.57.5111518.5224575
    Max Working Temperature ()9595959595959595

    Outline dimension (m)
    Length * width * height

    1.16×0.9×1.24

    1.16×0.9×1.24


    1.16×0.9×1.24


    1.4×1.1×1.421.4×1.1×1.421.4×1.1×1.422.2×1.1×1.452.2×1.2×1.5
    Weight(Tons)0.40.51.251.251.251.251.72.8


    This equipment can be used widely in production, research and technical development of food, juice, milk extract, drink, pharmacy, fine chemical, biotechnology and other field s.
    Many kinds of material such as milk, bean milk or juice can be homogenized under high pressure to considerably thin the fat balls in the milk juice liquid, which makes the products be easy to be digested and absorbed, and improve the edibleness.
    This equipment can be used in the production of ice cream to improve the thinness and fraction void of liquid material....
    It also can be used in the production of emulsion, glue, fruit juice to avoid the or reduce the layering of the material liquid, improve the appearance of the material liquid, which can be more bright, fragrant and delicious.
    The material liquid will be dried into powder by spray drying devices after thinning by homogenizers, so that homogenizers are main devices in powder production.
    25Mpa 40Mpa Juice Milk High Pressure Homogenizer Juice Cream Homogenizer
