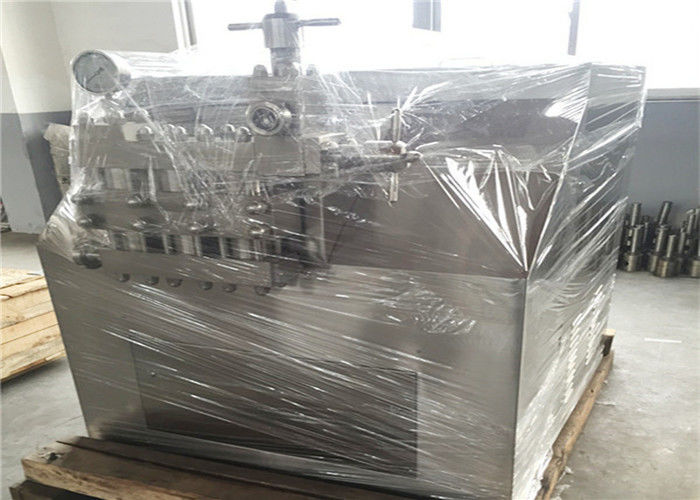

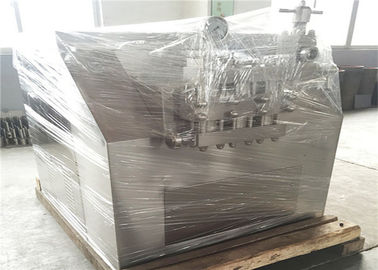

3000L Food Homogenizer Machine , Dairy Homogenizer Two Piston Type Easy Clean

3000L Food Homogenizer Machine , Dairy Homogenizer Two Piston Type Easy Clean

    • 3000L Food Homogenizer Machine , Dairy Homogenizer Two Piston Type Easy Clean
    • 3000L Food Homogenizer Machine , Dairy Homogenizer Two Piston Type Easy Clean
    • 3000L Food Homogenizer Machine , Dairy Homogenizer Two Piston Type Easy Clean
  • 3000L Food Homogenizer Machine , Dairy Homogenizer Two Piston Type Easy Clean

    Product Details:

    Certification: CE
    Model Number: 3000L-25 3000 -40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: 14500USD
    Packaging Details: Standard Wooden Box
    Delivery Time: 20 days after get your advance payment
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 1000 Set per month .
    Contact Now
    Detailed Product Description
    Name: Ice Cream Homogenizer Machine Application: Milk ,Juice ,Yogurt ,Ice Cream
    Certificate: CE Design Pressure: 25Mpa
    Type: Two Piston Working Temperature: ≤95
    Delivery: 20 Days After Get Your Advance Payment Packing: Wooden Box
    High Light:

    two stage homogenizer

    ,

    ice cream homogenizer machine

    3000L Ice Cream Homgenizer Milk Homogenizer For Dairy Industry CE Certificate

    1. Instruction of Homogenizer  :

    High pressure homogenizer series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, highly presses the liquid, fully mixes and refines the material.

    Brief introduction:
    It is suitable for the homogenizing of liquid products whose viscosity is lower than 0.2Pa and whose temperature is lower than 95° C such as dairy, beverage, makeup, and medicine and so on. This equipment transports the processed material to homogenizing vale in high pressure way by triple plunger pump, making the material receive complex force such as turbulence, cavity, cut when the material flow past the little space between the valve plate and the valve seat to reach the purpose of emulsification and homogenizing.
    Structure of Homogenizer:
    The stator works in concert with rotor, the working head (the stator and rotor forging manufacturing) is claw type structure, double suction and the shear efficiency is high.

    Usages of Homogenizer:
    Application in biological medicine; Food industry; Day care; Coating printing ink; Nano-materials; Petroleum chemical; Printing and dyeing auxiliaries; Paper industry; Pesticide and fertilizer; Plastic rubber; Power electronics and other fine chemical industry.

    2. Technical Parameter :


    Model No.
    Technical parameter


    GJB3-25

    Rated pressure(Mpa) 250Mpa
    Max Working Temperature ( ℃) ≤95
    Rated flow(Litres/h) 3000
    Medium temperature(℃) ≤85
    Feeding pipe diameter(mm) 32
    Discharge pipe diameter(mm) 20
    Power of motor(KW) 22
    Volt and Electricity Flow Make to your order
    Outline dimension(m)Length * width * height 1.4×1.1×1.42
    MATERIAL Sanitary Stainless Steel 304
    Weight(Ton) 1.25



    4. Our Service :


    Our Services


    1. Provide for equipment inspection certificate and manual, to ensure that users properly install and use.
    2. Equipment to reach the destination, the company will send engineers to guide installation and
    commissioning and customer training until satisfied.
    3. The warranty period will be free to customers wearing accessories, after one year warranty period, our company to provide parts at cost.
    4. we provide lifelong maintenance service, including if necessary, to send engineers to the customer at the service.

    Characteristics of Homogenizer
    1. With high stability, low noise, easy clean, flexible advantages. It can be widely used in industrial production of emulsion, uniform and scattered.
    2. Making the material refined mix under the triple action of crowding inquiry, strong impact and loss-pressure expansion.
    3. For soybean milk and other kinds of dairy drink milk, under high pressure for homogeneous
    4. It can improve the degree of fineness and loose, making its inherent quality obviously improved.
    5. It can prevent or reduce material liquid to layered, improve the look of the material liquid effect, making its color brighter, fragrance thicker, tastes well.


    3000L Food Homogenizer Machine , Dairy Homogenizer Two Piston Type Easy Clean
