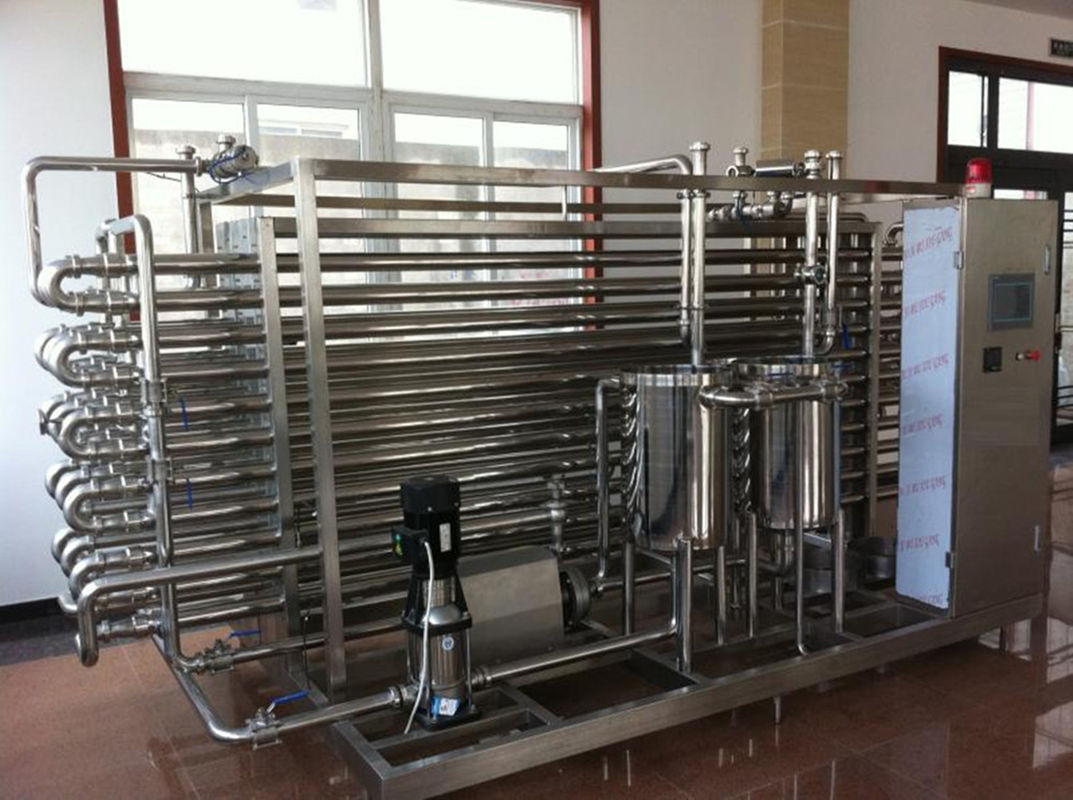

Milk UHT Sterilization Machine 1000 LPH Tubular Flash Pasteurization Equipment

Product Details:

Certification:	ISO
Model Number:	1000L 2000L 5000L

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Standard Wooden Box
Delivery Time:	35 days after get your advance deposit
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	100 Set /Year

Contact Now

Detailed Product Description

Name:	Milk Flash UHT Sterilizer	Material:	Sanitary Stainless Steel 304 / 316
Application:	Milk / Yogurt /Juice / Drink	Inlet Temperature:	20 -65C
Sterilization Temperature:	115-135C	Holding Time:	5Seg-30 Seg
Outlet Temperature:	20C-65C	Type:	Full Automatic With PLC Finger Touch Screen
Packing:	Wooden Box
High Light:	milk sterilizer machine , uht pasteurization equipment

1000LPH Milk Yogurt Tubular Flash UHT Sterilizer With PLC Touch Screen

1. Technical Parameter :

Working condition

Material(Milk)

1000L/H

Inlet Temperature

20-65℃

Steam pressure

0.5~0.6MPa

Cooling water temp

10℃

Design requirement

Material Pasteurizing Temp

115-135℃

Holding time

5-30S

Outlet Temperature

4℃

Equipment and technical parameter

Name

Technical parameter

Name

Technical parameter

Model

KQ-UHT-50

Electric consumption

11KW

Heat exchange area

50m2

Material Inlet&Outlet Dia

￠38

Pipes Material & Dia

304,￠12×1.65mm

Water Inlet&Outlet Dia

￠38

Outer Pipes Material,Dia

304,￠63×2mm

Cooling water flow

6-7t/h

Sterilizing Temp

96C (Adjustable)

Equipment Size

3500(L)×1800(W)×2000(H)

Steam Consumption

200Kg/h

Steaming Pipe Dia

￠36×3

reflux valve work condition

Alarm when high temperature,reflux when low temperature(automatically)

Compressed air pressure

>0.6Mpa

Power

3 phase 50HZ 380V

Compressed air consumption

0.3M³/min

Weight

2.12T

2. Instruction :

The machine has characteristics such as compact structure, effective sterilization, convenient operation, wide adaptation, low cost and so on.According to users' needs, it can be supplied separately UHT sterilization system, including tube-type sterilizing machine, preheating tank, and insulation tank, the homogenizer interfaces can prevent formatting milk stone, with the pasteurization function.It can also available the entire unit, including UHT sterilizing system and flash degassing system.

Usage

It's widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.

Characteristics

1. The huge viscosity range.The use environment PH value is 1-14.It is suitable for sterile production of fresh milk, pasteurized milk, yogurt, colored milk, juice, tea drinks, wine, ice cream, soy milk, beverage, jam, butter and other products.The products produced by UHT sterilization system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain.

2. The equipment is automatically or semi-automatically controlled by computer with LCD touch screen operation.

3. Instantaneous processing maintains the original flavor of the products.

4. PID temperature control system, sterilization temperature recorded continuously in real time.

5. The product has uniform heat treatment, heat recovery up to 90%.

6. The tube inside without any contact, no health dead corners, and the products will not adhere to the tube, and the bellows can form high turbulence in sterilization process, with a self-cleaning effect, so it is difficult to form tube fouling and pollution.

7. With a long continuous operating time and good CIP self-cleaning effect.

8. Less spare parts, low operating costs.

9. Easy to install, inspect and remove, convenient to maintain pipeline.

10. Reliable material, affordable a higher product pressure.
