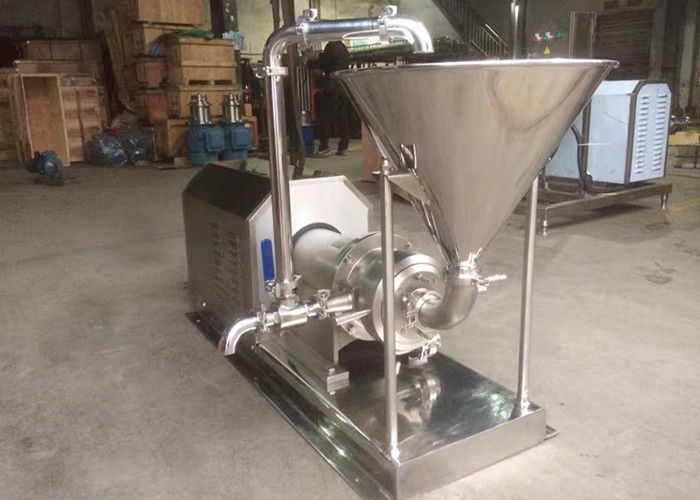

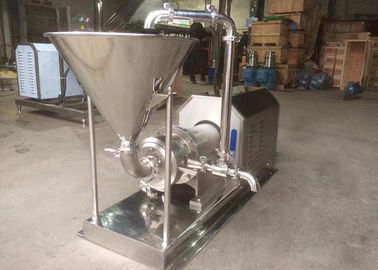

High Pressure Food Grade Pump SS316 Cam Rotor Hygienic Sanitary Lobe Pump

High Pressure Food Grade Pump SS316 Cam Rotor Hygienic Sanitary Lobe Pump

    • High Pressure Food Grade Pump SS316 Cam Rotor Hygienic Sanitary Lobe Pump
    • High Pressure Food Grade Pump SS316 Cam Rotor Hygienic Sanitary Lobe Pump
  • High Pressure Food Grade Pump SS316 Cam Rotor Hygienic Sanitary Lobe Pump

    Product Details:

    Certification: ISO
    Model Number: KQ1T-30T

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: discussible
    Packaging Details: Wooden box
    Delivery Time: 5-15 days
    Payment Terms: T/T, Western Union
    Supply Ability: 500 sets per month
    Contact Now
    Detailed Product Description
    Name: Sanitary304 Hygienic Food Grade Lobe Pump Pressure: High Pressure
    Motor Power: 2.2KW Voltage: 380V 50HZ 3Phase
    Warranty: 12 Months Material: SS316
    High Light:

    stainless steel centrifugal pump

    ,

    food grade centrifugal pump

    Sanitary Stainless Steel 304 Cam Rotor Hygienic Food Grade Lobe Pump



    The common characteristics of the rotor pump are as follows.


    1. there are no suction valves and discharge valves. Their main working parts are pump shells and rotors (such as gears, screws, cams, etc.).


    2. compared with reciprocating pump, the rotor has no impact, high speed, compact structure and small volume.


    3. discharge pressure is generally higher, but lower than reciprocating pump, flow rate is smaller than reciprocating pump, low efficiency, generally only suitable for small quantity of liquid, and most of the auxiliary equipment to use.


    4. most of the rotor pumps are lubricated by their own conveying fluids, so they are generally suitable for conveying liquid with lubricity and without solid particles.


    5. rotor pump is also intermittent discharge liquid, so the flow fluctuation is larger than the centrifugal pump, smaller than the reciprocating pump, but it can be seen as approximately uniform.


    6. when there is a liquid film on the rotor surface (conveying lubricating liquid), the pump will have the ability of self absorption.





    Max Flow
    62m³/h / 272GPM
    Seal / Gasket
    EPDM
    Motor
    ABB Motor / Local Motor
    Power
    0.55kw ~ 22KW
    Voltage
    110V / 220V / 380V
    Frequency
    50HZ / 60HZ
    Max Pressure
    12 Bar / 174 Psi
    Surface Polish
    Inner polished & sandblast outside
    Machine Processing
    27 Sets Advanced CNC Machine
    Service
    OEM / ODM
    Delivery
    By Sea / By Air / By Express
    Payment Terms
    100% TT / 50%TT in advance, balance 50% before delivery







    High Pressure Food Grade Pump SS316 Cam Rotor Hygienic Sanitary Lobe Pump




    FAQ
    Q: Are you trading company or manufacturer ?
    A: We are factory.
    Q: How long is your delivery time?
    A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
    Q: Do you provide samples ? is it free or extra ?
    A: No.
    Q: What is your terms of payment ?
    A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.


    Packaging & Shipping
    Wooden box ,shipping by sea or air.



    Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
    Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
    Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
    Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
