Product Details:
Payment & Shipping Terms:
|
| Name: | Food Grade Dispersing Emulsion Pump | Material: | SS304 SS316 |
|---|---|---|---|
| Power: | Electric | Voltage: | 110V 480V 380V 50HZ 60HZ |
| Condition: | New | Color: | Steel True Colors |
| Highlight: | stainless steel centrifugal pump,sanitary centrifugal pump |
||

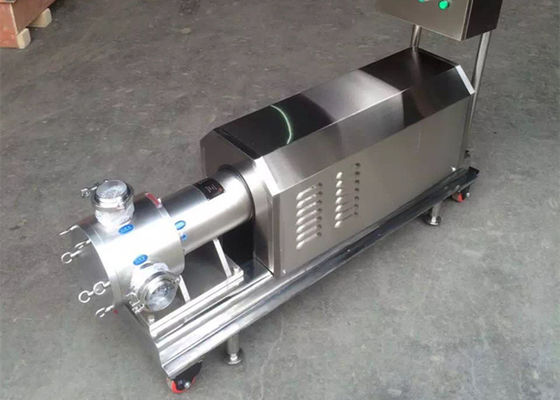

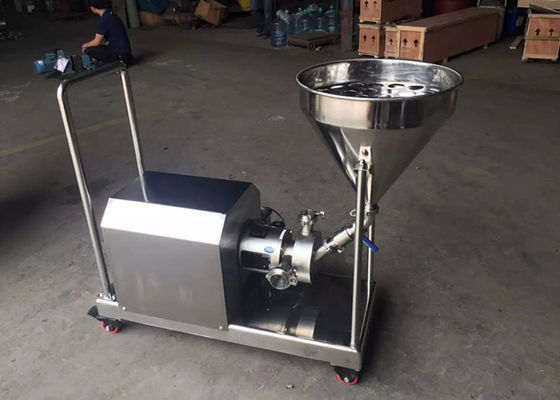

Food grade three stage pipeline high shear dispersing emulsification emulsion pump
Pipeline high shear dispersing emulsifier is a high performance equipment used for continuous continuous
production of circulated threatment of fine material.The machine disperses,shears and emulsifis the
material in shortest time,and the diameter range of the particles gets smaller so that fine and stable
products are produced
Advantage Of Pipeline High Shear Dispersin Emulsifier
1. Small diameter range ,and highly even
2. Time saving ,highly efficient and energy saving
3. Low noise ,stable operation
4. Reduced qualit difference between lots
5. Material is fully dispersed and sheared
6. Daliver in short distance with lowlift
7. Easy operation ,convenient maintenance
8. Automatic control
9 .Mass production suitable for continuous production
|
Product Name
|
Three Stage Pipeline Emulsification Pump
|
|
Material
|
SUS304, SUS316L
|
|
Standard
|
DIN, SMS, ISO
|
|
Surface reatment
|
Polishing Ra≤0.8μm,Appearance Sandblasting
|
|
Auxiliary Seal
|
EPDM,VMQ,FKM,PTFE
|
|
Machinery Sealed Material
|
C-SIC,SIC-SIC,TC-TC
|
|
Connection Way
|
Clamp,Thread,Flange
|
|
Temperature Range
|
-10℃~+140℃
|
| Type | Power(KW) | Voltage |
Rev(RPM) |
Flow Rate (M3/h) |
Outlet Pressure(MPa) | Material |
| SRH-80 | 1.5 | 380V/50Hz | 2900 | 0-1.5 | ≤0.2 | SS304 |
| SRH-100 | 2.2 | 380V/50Hz | 2900 | 0-3 | ≤0.2 | SS304 |
| SRH-130 | 4 | 380V/50Hz | 2900 | 0-4 | ≤0.2 | SS304 |
| SRH-140 | 5.5 | 380V/50Hz | 2900 | 0-5 | ≤0.2 | SS304 |
| SRH-165 | 7.5 | 380V/50Hz | 2900 | 0-8 | ≤0.2 | SS304 |
| SRH-180 | 11 | 380V/50Hz | 2900 | 0-12 | ≤0.2 | SS304 |
| SRH-185 | 15 | 380V/50Hz | 2900 | 0-18 | ≤0.2 | SS304 |
| SRH-200 | 22 | 380V/50Hz | 2900 | 0-25 | ≤0.2 | SS304 |
| SRH-210 | 30 | 380V/50Hz | 2900 | 0-35 | ≤0.2 | SS304 |
| SRH-230 | 45 | 380V/50Hz | 2900 | 0-50 | ≤0.2 | SS304 |
| SRH-245 | 55 | 380V/50Hz | 2900 | 0-75 | ≤0.2 | SS304 |
| SRH-260 | 75 | 380V/50Hz | 2900 | 0-90 | ≤0.2 | SS304 |
| SRH-275 | 90 | 380V/50Hz | 2900 | 0-110 | ≤0.2 | SS304 |
| SRH-280 | 132 | 380V/50Hz | 2900 | 0-130 | ≤0.2 | SS304 |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Packaging & Shipping
Wooden box ,shipping by sea or air.
Warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
Training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
Maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
Lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
