Certification: | ISO |
Model Number: | 1000L to 20000L |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | 2000USD |
Packaging Details: | Standard Export Wooden Box |
Delivery Time: | 15 to 20 days after get your advance payment . |
Payment Terms: | T/T, L/C |
Supply Ability: | 200 Set per month |
Name: | Stainless Steel Processing Emulsifying Mixing Tanks | Material: | Stainless Steel 304 / 316 / 316L |
---|---|---|---|
Capacity: | 100L To 10000L | Heating: | Steam Heating / Electric Heating |
Speed Of Mixer: | 36RPM /48RPM /72RPM /2900RPM | Surface Treatment: | Inside Mirror And Outside Polished |
Motor: | ABB / SIEMENS / SEW | Pressure: | 0.2Mpa , Make To Your Order |
High Light: | stainless steel storage tanks,sanitary stainless steel tanks |

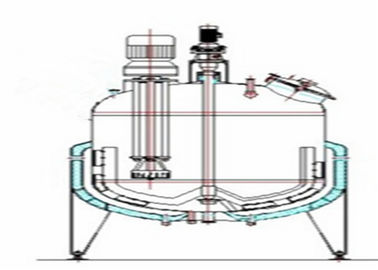

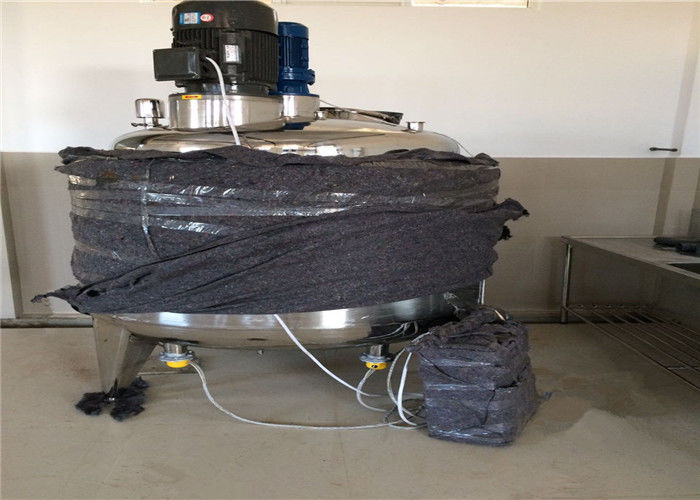

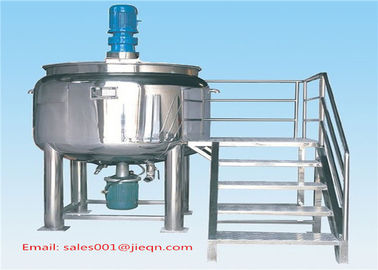

Stainless Steel Shampoo Detergent Perfume Processing Emulsifying Mixing Tanks
1. Instruction Tank :
It owns compression resistant, corrosion resistant, use agile, vacuum absorbing materials, positive pressure discharging material, easy clean and other functions.
Usage
It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.
Characteristics
1. The insulation material is polyurethane foam or pearl cotton which is high temperature-resistant and anti-aging.
2. The interface adopts international standard ISO fast loading camp, inner pot uses imported stainless steel SUS304 or SUS306L, and is mirror-polished to Ra≤ 0.4m, outer surface adopts matte, mirror, blasting, or cold-rolled matte.
3. The seal head adopt imported sanitary mechanical agitation seal or magnetic seal agitating device, stirring speed are optional.
4. The pipe mouth is equipped with liquid level gauge (static pressure type, capacitive, non-contact type, ultrasonic type, glass tube type), air-breathing mouth, thermometer( digital display type or dial type), CIP cleaning mouth, mirror, explosion-proof sight (integration of mirror and light), SIP sterilization mouth, liquid inlet and outlet and sanitary manhole etc.
2. Technical Parameter :
Stainless Steel Shampoo Detergent Perfume Processing Emulsifying Mixing Tank
Stainless Steel 304 316 Coconut Milk Heating Emulsifying Mixing Tank
cooling and heating tank with scraper agitator or with paddle mixer |
Effective Volumn(L) |
Dimension of Tank(mm*mm) |
Total Height (mm) |
Diamension of inlet&outlet (mm) |
Heat preservation layer(mm) |
500 | 840*1000 | 2250 | 38 | 60 |
600 | 920*1000 | 2300 | 38 | 60 |
700 | 990*1000 | 2300 | 38 | 60 |
800 | 950*1220 | 2500 | 38 | 60 |
900 | 1010*1220 | 2500 | 38 | 60 |
1000 | 1060*1220 | 2550 | 51 | 60 |
1500 | 1160*1500 | 2850 | 51 | 60 |
2000 | 1340*1500 | 2900 | 51 | 60 |
3000 | 1410*2000 | 3400 | 51 | 60 |
4000 | 1620*2000 | 3450 | 51 | 60 |
5000 | 1810*2000 | 3500 | 51 | 60 |
6000 | 1980*2000 | 3550 | 51 | 60 |
7000 | 1930*2440 | 4000 | 51 | 60 |
According to storage capacity , the storage tanks are classified into tanks of 1-5000m3, For storage tanks with storage capacity of more than k20 m3, It is suggested to use outdoor starage tanks . The storage tank is made of SUS316L, SuS304 and has good heat presevation perforamance . THe accessories are as follows:inlet and outlet , manhole , theromometer, liquid level indicator, high and low liquid level alarm, fly andinsect prevention spiracle, aseptic sampling vent, meter CIP cleaning spraying head..
