3000L 4000L 5000L Stainless Steel Storage Tanks For Foods / Dairy Products

3000L 4000L 5000L Stainless Steel Storage Tanks For Foods / Dairy Products

    • 3000L 4000L 5000L Stainless Steel Storage Tanks For Foods / Dairy Products
    • 3000L 4000L 5000L Stainless Steel Storage Tanks For Foods / Dairy Products
  • 3000L 4000L 5000L Stainless Steel Storage Tanks For Foods / Dairy Products

    Product Details:

    Certification: ISO
    Model Number: KQ 1000L -9000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1Set
    Price: 2600
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 15 to 25 days after get your advance payment
    Supply Ability: 100 Set per month
    Contact Now
    Detailed Product Description
    Name: Cheese Mixing Tanks Storage Tank Blending Vat Function: Storage , Mixing , Heating , Emulsifying
    Material: Sanitary Stainless Steel Mixing Tank Insulation: 50mm Polythure Foam
    Capacity: 100L To 4000L Thermometer: Yes
    Packing: Wooden Box
    High Light:

    sanitary stainless steel tanks

    ,

    stainless steel blending tanks

                   3000L 4000L Cheese Mixing Tanks Storage Tank Blending Vat Heating Tank



    1. Tank Picture and Instruction :



    Stainless steel tank



    Product Name: stainless steel tank
    Motor Brand : ABB / Siemens / SEW
    Material :304(L) 316(L)
    Finish:Mirror or Matt Polish; Ra<0.4um
    Certification: CE ISO9001:2000

    Used as mixing tank, blending tank etc.


    Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

    Structure characteristics:


    Made of single-layer stainless steel structure.
    Materials are all sanitary stainless steel.
    Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

    Configuration of tank:


    Quick open manhole.


    Various types of CIP cleaners.
    Fly and insect resistant sanitary breathing cover.
    Adjustable triangular bracket.
    Dismountable materials input pipe assembly
    Thermometer (According to customer requirements ).
    Ladder (According to customer requirements).
    Paddle blender.
    Liquid level meter and lever controller (According to customer requirements).
    Eddy-proof board.
    Customized and Non-standard products also welcomed.



    2. Tank Parameter :



    Volume Body Diameter X Body Height Total Height Insulate PU Foam Inlet&Outlet
    (L) (mm*mm) (mm) (mm) (mm)
    500 840*1000 2300 60 38
    600 920*1000 2400 60 38
    700 990*1000 2400 60 38
    800 950*1220 2550 60 38
    900 1010*1220 2700 60 38
    1000 1060*1220 2700 60 51
    2000 1340*1500 2750 60 51
    3000 1410*2000 3500 60 51
    5000 1910*2000 3850 60 51
    10000 2300*2440 4500 60 51
    15000 2530*3000 5200 60 51
    20000 2640*3660 5800 60 51

    3. Factory :

    stainless steel steam jacket vessel yogurt fermentation double jacketed tank can be used as liquid stostainless steel steam jacket vessel yogurt fermentation double jacketed tankge tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
    Finish:Mirror or Matt Polish; Ra<0.4um
    1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
    2. Tank shell thickness:3mm at least (according to the design or your required)
    3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
    4. Design work temperature:-4~~+150C
    5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
    Certification: CE ISO9001:2000.



    Have different kinds of agitators:
    1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
    2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
    3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
    4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
    5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.

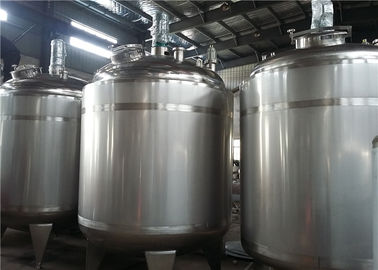

    3000L 4000L 5000L Stainless Steel Storage Tanks For Foods / Dairy Products

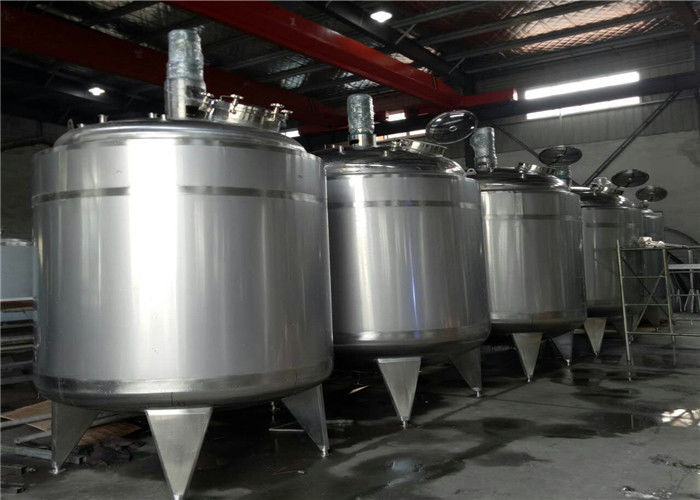

    3000L 4000L 5000L Stainless Steel Storage Tanks For Foods / Dairy Products
