Single Double Wall Stainless Steel Mixing Tanks / Beer Fermentation Tanks

          Stainless Steel Single Double Wall Mixing Tanks Buffer Tank Fermentation Tank

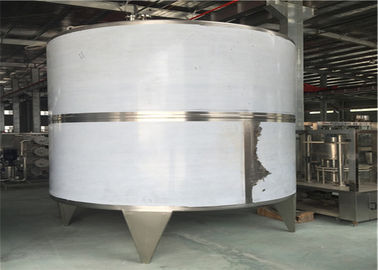

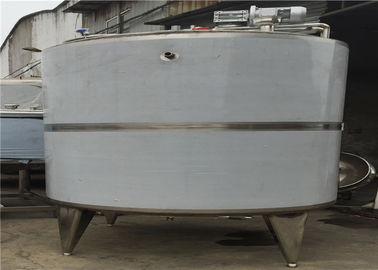

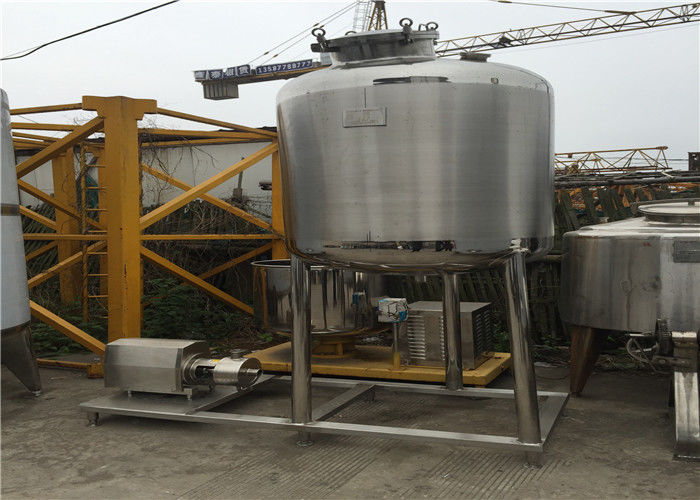

1. Storage Tank Picture and Instruction :

1. Joints adopt international general ISO package chuck, inner container adopts imported stainless steel SUS 304 or SUS316, internal surface polishing.

1) nominal volume:50L-20000L and other general specifications and non-standard design and production.
2) the structure of the form: vertical, the use of conical, oval, dish shaped head, also apply to the need to close the heating, mixing, reaction, enzymatic hydrolysis and other process operation.
3) jacket forms: hollow heat conducting oil or water), semicircular coil pipe, honeycomb jacket (on demand system), heating or cooling efficiency is high.
4) insulation material: filling pearl cotton, rock wool, polyurethane foam, with good thermal insulation effect.
5) exterior surface of the cylinder body: use mirror polishing or 2B color matte or 2B matte surface polishing treatment, beautiful and clean appearance.
6) stirring device: at the top of the tank in the (partial) heart stirring, stirring side; agitator types: frame type, anchor type, push type, blade, scraping wall blade etc.
7) stirring speed: Low speed stirrer, high speed disperser or high speed homognizer.
8) level meter form: glass tube liquid level gauge, static pressure sensing type liquid level meter and so on (for selection).
9) feet form: adjustable three pyramid form or cylindrical tube.
10) equipment accessories configuration: quick open sanitary manhole, mirror, (liquid crystal digital display type or dial pointer type) thermometer, respirators, CIP cleaning machines, material liquid inlet and outlet, circular mouth, hot and cold media import and export interface, the nozzle can be according to the process of selection may increase or decrease).

2. All is in accordance with GMP Standards.

Specification: 10L~30000L
Material: SS316L or SS304
Surface finish: Inside surface is Ra0.28~0.6μ M by mechanical Polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μ M by satin finish.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: Dimple jacket, full jacket, or coil jacket
Insulation material: Rock wool
Components can be equipped as request:
Standard components: Manhole or handhole, sight glass, cleaning ball
Optional components:
Vent filter with Pall cartridge or China brand cartridge
Temp. Gauge, display on the gauge directly on the vessel
Temp sensor PT100, digital display on the control cabinet by instrument
Temp sensor with control for heating and cooling
Level gauge with digital display on the control cabinet by instrument
Load cell
Valves
Typical Application
Wine, Beer
Juices
Food & Beverage
Pharmaceutical
Biotechnology & Laboratory
Medical &Medical Device

Chemical IndustryStainless Steel Single Double Wall Jackete Wall Buffer Tank Fermentation Tank

2. Technical Parameter :

3. Factory :

Application:

Used as liquid storage tank, temporary storage tank and water storage tank etc.
Ideal in fields such as foods, dairy production, fruit juice beverages, pharmaceutical, chemical industry and biological engineering etc.
Capacity: 200-50,000 liters

Parameter:

Type: Single layer, double layer
Isolation material: rock wool, PU foam
Sockets: manhole, inlet, outlet, cleaning ball, air vent, spare hole, etc
Finish: Sanitary finish, without dead angles.
Material:
All materials adopt stainless steel SUS304 or SUS316L. Internal surface is polished to Ra≤0.4μm and external surface has got surface polishing treatment, which is in accordance with GMP standard.
