|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Export Wooden Box|
|Delivery Time:||20 days after get your advance payment .|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||100 Set per month|
|Name:||Stainless Steel Milk Cooling Tank||Material:||Sanitary Stainless Steel 304 / 316|
|Refrigerating Liquid:||404A / R22||Motor Brand:||ABB / Siemens|
|Speed Of Mixer:||36RPM /18 RPM||Surface Treatment:||Inside Mirror And Outside Polished|
milk cooling equipment,
stainless steel cooling tank
1000Lltres 3000L Milk Cooling Tank With Air Compressor Milk Storage Tank

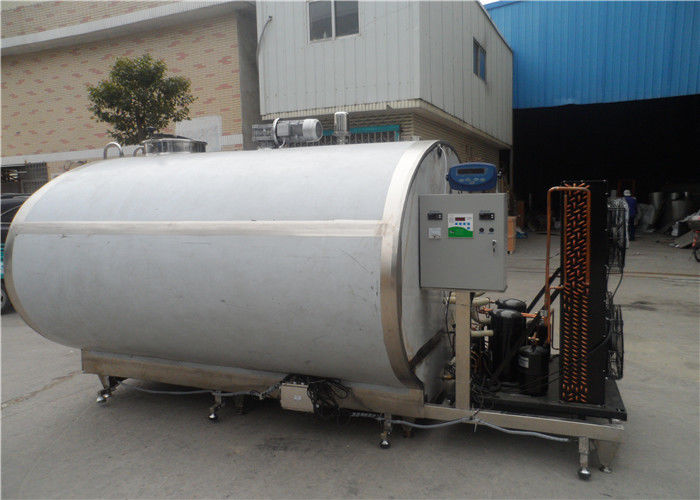

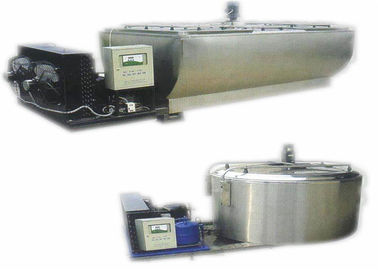

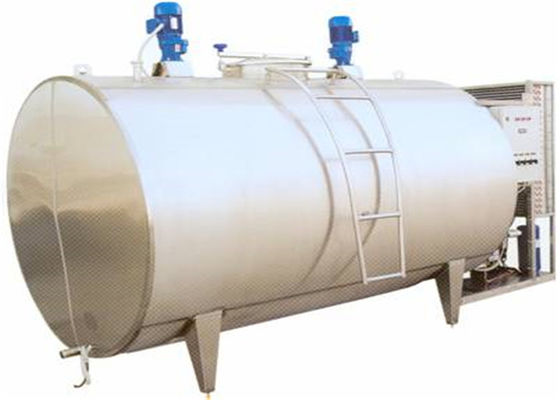

1. Milk Cooling Tank Picture :
Details of Stainless Steel Milk Tank , Milk Cooling Tank:
A.Type: Vertical type and horizontal type;
B. Material: Stainless Steel 304
C. Capacity: 200L to 10000L;
D. Power: 1.1kw-20kw
E. Cooling Capacity: 5kw-70kw
F. Agitator: Cooling Tanks for Milk built with agitator
G. Speed 32-36rmp/min
H. Manual or automatic available
I. OEM service available;
Stainless Steel Milk Tank , Milk Cooling Tank Description:
Stainless Steel Milk Tank , Small Milk Cooling Tank is mainly used in preserving and storing fresh milk or other fresh liquid (sour milk, soft drink and wine etc.)cooling, so as to refrigerate and retain freshness, prevent bacterial breed. The milk collection device and vacuum tank use stainless steel and are made by advanced foreign technology. They feature stable vacuum performance and pleasant appearance.
Material: Double-walled stainless steel, resistance to high temperature and
Standard: Design and manufacture according to ISO9001: 200,ISO9001-2008 and GBT10942-2001
ISO 5708: 1983 refrigerate standard.
Compressor: The milk tank adapt high-performance, low noise, stability.
Display: with control panel and digital could be display.
Insulating: with thickness 60-80mm polyurethane foam to keep thermal insulation.
Cleaning: Automatic clean and wash milk and other liquid, high efficient and convenient.
Stainless Steel Milk Tank , Milk Cooling Tank Applications:
1. used in preserving and storing fresh milk cooling;
2. used for other fresh liquid (beer, juice soft drink and wine etc.)cooling;
3. used to to refrigerate and retain freshness;
4. used to prevent bacterial breed;
5. used in milk collection center or station;
6. used in dairy and food factory;
7. used in pasture and dairy farmer;
2. Technical details :
|Model Number||KQ200 to KQ10000L|
|Item||Stainless Steel Milk Tank , Milk Cooling Tank|
|Capacity||200 liter to 10000liter|
|Compressor Power||3KW to 18KW|
|Agitator Power||450W to 750W|
|Cooling Capacity||5000W to 70000W|
|Weight||500kg to 1500kg|
Technical Parameter :
|Type||KQ-2000 Laying type|
|Air Compressor||Copeland (USA )|
|Inside /Outside Treatment||Inside Mirror and Outside Polished .|
|Voltage||Make to your order .|
|Electric Control Box||Yes|
|Accessories||Cleaning Ball , CIP Inlet / Outlet|
|Working Life of the tank||10 years or more .|
3. Factory :
4. Application :
Stainless Steel Milk Tank , Milk Cooling Tank Competitive Advantage:
I. We are machines manufacture sale directly
II. High Quality with reasonable price
III. We provide the technical support within the one year warranty.
China Milk Stainless Steel Cooling Tank Milk Storage Tank Milk Tank
Stainless Steel Milk Cooling Tank Usage
It is an important corollary equipment of mechanized milking ranch; It's more suitable for the manual dispersed milking farms and milk collection station store fresh milk, dairy cooling set.
Stainless Steel Milk Cooling Tank Structure
Vertical cooling milk pot is mainly composed of pot body, stirrer, and washing machine, cooling unit and electric control boxes.
Milk pot is a horizontal elliptic form, between the inside and outside pot is poly amino ester hard foam board, the material has low thermal conductivity, light proportion, high strength, and low bibulous rate. Insulation layer, insulation performance is good.
Stainless Steel Milk Cooling Tank Characterusutics
1. Rigid wall uses the advanced plate evaporator to directly refrigerate milk.
2. Refrigeration compressor uses imported French closed compressor set, equipped with the reliable midpoint defend device, will not burn motor out due to overload or system fault.
3. Pots are all adopt stainless steel SUS304 or SUS316, with automatic pressure cleaning and manual and automatic stirring device,
4. Insulation layer uses polyurethane foam with good insulation performance.
