1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating

1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating

    • 1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating
    • 1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating
    • 1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating
  • 1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating

    Product Details:

    Certification: ISO
    Model Number: 100L to 30000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 2000USD
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 15 to 20 days after get your advance payment .
    Payment Terms: T/T, L/C
    Supply Ability: 100 Set per month
    Contact Now
    Detailed Product Description
    Name: 1000L Jam Ketchup Sauce Making Stainless Steel Fermentation Tanks Material: Stainless Steel 304 / 316
    Capacity: 100L To 10000L Heating: Steam Heating / Electric Heating
    Speed Of Mixer: 36RPM /72RPM /2900RPM Surface Treatment: Inside Mirror And Outside Polished
    Motor: ABB / SIEMENS / SEW Pressure: Make To Your Order
    High Light:

    stainless steel fermentation vessel

    ,

    brewery fermentation tanks

                  1000L Jam Ketchup Sauce Making Stainless Steel Mixing Fermentation Tanks



    1. Instruction Tank :



    It owns compression resistant, corrosion resistant, use agile, vacuum absorbing materials, positive pressure discharging material, easy clean and other functions.

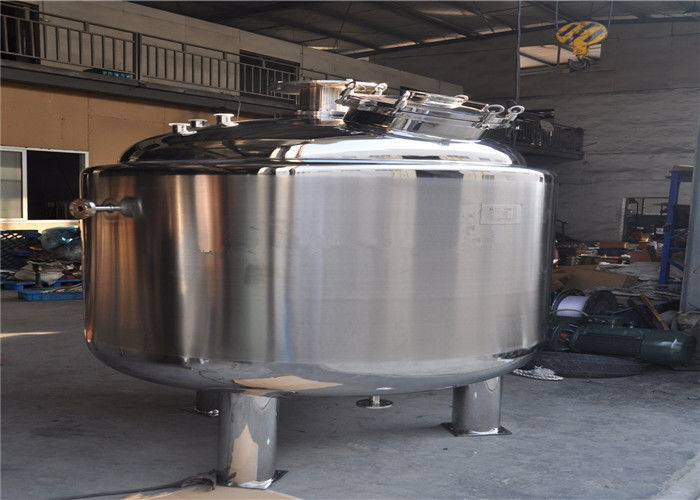

    1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating
    Usage
    It is mainly used for dairy, sugar, beverage, food and other elements mixing with all kinds of drugs to stir homogeneously. And now it has been the indispensable equipment in the dairy products, beverage, and pharmaceutical factories.

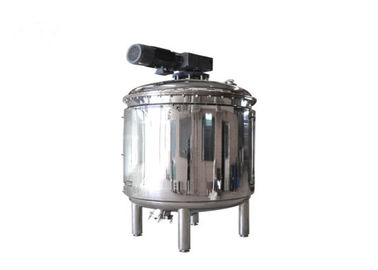

    1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating



    Characteristics


    1. The insulation material is polyurethane foam or pearl cotton which is high temperature-resistant and anti-aging.
    2. The interface adopts international standard ISO fast loading camp, inner pot uses imported stainless steel SUS304 or SUS306L, and is mirror-polished to Ra≤ 0.4m, outer surface adopts matte, mirror, blasting, or cold-rolled matte.
    3. The seal head adopt imported sanitary mechanical agitation seal or magnetic seal agitating device, stirring speed are optional.
    4. The pipe mouth is equipped with liquid level gauge (static pressure type, capacitive, non-contact type, ultrasonic type, glass tube type), air-breathing mouth, thermometer( digital display type or dial type), CIP cleaning mouth, mirror, explosion-proof sight (integration of mirror and light), SIP sterilization mouth, liquid inlet and outlet and sanitary manhole etc.

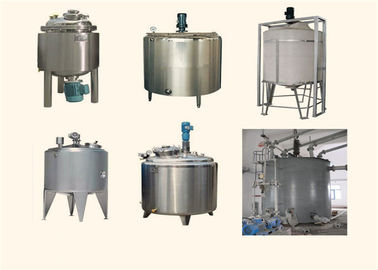

    1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating



    2. Technical Parameter :



    Stainless Steel 304 316 Coconut Milk Heating Emulsifying Mixing Tank



    cooling and heating tank with scraper agitator or with paddle mixer
    Effective
    Volumn(L)
    Dimension of
    Tank(mm*mm)
    Total Height
    (mm)
    Diamension
    of inlet&outlet
    (mm)
    Heat
    preservation
    layer(mm)
    500 840*1000 2250 38 60
    600 920*1000 2300 38 60
    700 990*1000 2300 38 60
    800 950*1220 2500 38 60
    900 1010*1220 2500 38 60
    1000 1060*1220 2550 51 60
    1500 1160*1500 2850 51 60
    2000 1340*1500 2900 51 60
    3000 1410*2000 3400 51 60
    4000 1620*2000 3450 51 60
    5000 1810*2000 3500 51 60
    6000 1980*2000 3550 51 60
    7000 1930*2440 4000 51 60



    4. Part of the pressure tank :



    According to storage capacity , the storage tanks are classified into tanks of 1-5000m3, For storage tanks with storage capacity of more than k20 m3, It is suggested to use  outdoor starage tanks . The storage tank is made of SUS316L, SuS304 and has good heat presevation perforamance . THe accessories are as follows:inlet and outlet , manhole , theromometer, liquid level indicator, high and low liquid level alarm, fly andinsect prevention spiracle, aseptic sampling vent, meter CIP cleaning spraying head..



    1000L Stainless Steel Fermentation Tanks Steam Heating / Electric Heating
