| Certification: | ISO |
| Model Number: | KQ1T-50T |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | discussible |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500 sets per month |
| Name: | Sanitary Stainless Steel Centrifugal Pump | Material: | SS304 |
|---|---|---|---|
| Power: | Electric | Voltage: | 380V 50HZ 3Phase |
| Standard Or Nonstandard: | Standard | Usage: | Water |
| High Light: | stainless steel centrifugal pump,food grade centrifugal pump |
||

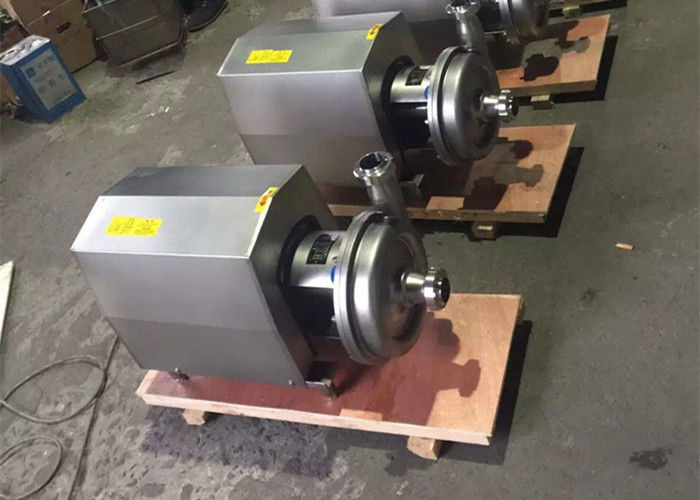

Sanitary Stainless Steel 304 Food Grade liquid Centrifugal Pump
Product Description
sanitary centrifugal pump
This series of centrifugal pumps as an ideal choice own a lot of advantages such as simple structure, easy removal, height-adjustable legs, shock-proof device, low noise, high efficiency, long time normal operation and convenient maintenance. Its smooth and soft handling to materials is in line with food sanitation requirements and ensures the original flavor of the products.
Classification of Centrifugal Pump
according to structure, it can be divided into three-foot pump and four-foot pump
according to material, there are SUS304 and SUS316L
according to motor species, it can be divided into ordinary motor, ABB motor and explosion-proof motor.
Usages of Centrifugal Pump
This product is widely used in the food and beverage, dairy products, medical, beer brewing, water supply, pharmaceutical, cosmetic, biological engineering, medicine and fine chemical industry project, is the ideal accessories of construction.
| Rating Flux (T/H) | 3 | 5 | 10 | 20 |
| Raise distance(M) | 18 | 24 | 24 | 24 |
| Wing wheel diameter | 126mm | 150mm | 150mm | 165mm |
| Inlet pipe(mm) | DN40 | DN50 | DN50 | D65 |
| Outlet pipe(mm) | DN32 | DN40 | DN40 | DN50 |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power(Kw) | 0.75 | 1.5 | 2.2 | 3 |
| Motor speed(r/min) | 2850 | 2850 | 2850 | 2850 |
| Dimension(mm) | 450×240×330 | 520×310×330 | 560×320×380 | 600×340×440 |
| Weight(kg) | 31 | 42 | 47 | 50 |
| Design and features of Sanitary centrifugal pump |
| • Different Connection type: Welding; Thread; Clamp |
| • Different connections standard:DIN,SMS,JIS, ISO. |
| • Open impeller manufactured with stainless steel investment casting technology. |
| • Sanitary mechanical seal. |
| • Parts in contact with pumped media AISI 316L or 304 |
| • Pump support from AISI 304 |
| • Inside surface finishing Ra < 0.4 um. |
| • Outside surface finishing Mirror polished |
| Options |
| • Mechanical seals in SiC/C, SiC/SiC or TgC/SiC. • Cooled or double mechanical seal. • Motors with additional protection.(movable, ABB Explosion proof). • Trolley and/ Switchboard with invertor |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Packaging & Shipping
Wooden box ,shipping by sea or air.
