|Model Number:||KQ 100L to KQ 5000L|
|Minimum Order Quantity:||1Set|
|Price:||2000USD / Set|
|Packaging Details:||Standard Wooden Box|
|Delivery Time:||15 Days after get your advance payment .|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||100 Sets Per Month|
|Name:||Jacketed Stainless Steel Tank||Capacity:||100l To 5000L|
|Material:||Stainless Steel 304 / 316||Insulation:||Polyurethane Foam|
|Surface Treatment:||Inside Mirror And Outside Polished||Max Diameter:||2200mm|
|Accessories:||Level Meter Air Vent ,Valves ,Manway||Packing:||Wooden Box|
stainless steel storage tanks,
stainless steel blending tanks
Stainless Steel Single Wall Double Wall Jacketed Storage Blending Mixing Tanks

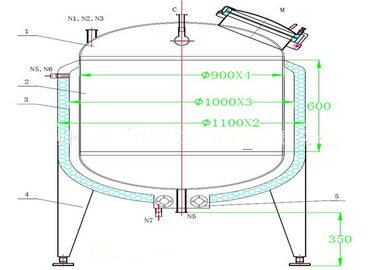

1 .Storage Tank Picture and Instruction :
1. Joints adopt international general ISO package chuck, inner container adopts imported stainless steel SUS 304 or SUS316, internal surface polishing.
2. All is in accordance with GMP Standards.
Material: SS316L or SS304
Surface finish: Inside surface is Ra0.28~0.6μ M by mechanical Polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μ M by satin finish.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: Dimple jacket, full jacket, or coil jacket
Insulation material: Rock wool
Components can be equipped as request:
Standard components: Manhole or handhole, sight glass, cleaning ball
Vent filter with Pall cartridge or China brand cartridge
Temp. Gauge, display on the gauge directly on the vessel
Temp sensor PT100, digital display on the control cabinet by instrument
Temp sensor with control for heating and cooling
Level gauge with digital display on the control cabinet by instrument
Food & Beverage
Biotechnology & Laboratory
Medical &Medical Device
2. Technical Parameter :
|Nominal pressure in kettle(Mpa)||0.5|
|Nominal pressure of jacket(Mpa)||0.250.6|
3. Factory :
Used as liquid storage tank, temporary storage tank and water storage tank etc.
Ideal in fields such as foods, dairy production, fruit juice beverages, pharmaceutical, chemical industry and biological engineering etc.
Capacity: 200-50,000 liters
Type: Single layer, double layer
Isolation material: rock wool, PU foam
Sockets: manhole, inlet, outlet, cleaning ball, air vent, spare hole, etc
Finish: Sanitary finish, without dead angles.
All materials adopt stainless steel SUS304 or SUS316L. Internal surface is polished to Ra≤0.4μm and external surface has got surface polishing treatment, which is in accordance with GMP standard.
