| Certification: | ISO ,FDA |
| Model Number: | KQ 100L -KQ800L |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 2000USD -3000USD |
| Packaging Details: | Standard Wooden Box |
| Delivery Time: | 15 to 30 days after get your advance payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Sets Per Month |
| Name: | Electric Steam Jacketed Kettle | Material: | Sanitary Stainless Steel 304 / 316 |
|---|---|---|---|
| Heating: | Steam Heating | Capacity: | 100L To 1000L |
| Speed Of Mixer: | 36RPM /48RPM | Motor: | ABB/ Siemens / China Brand |
| Application: | Food Industry | Warranty: | One Year . |
| High Light: | stainless steel steam kettle,industrial steam jacketed kettle |
||

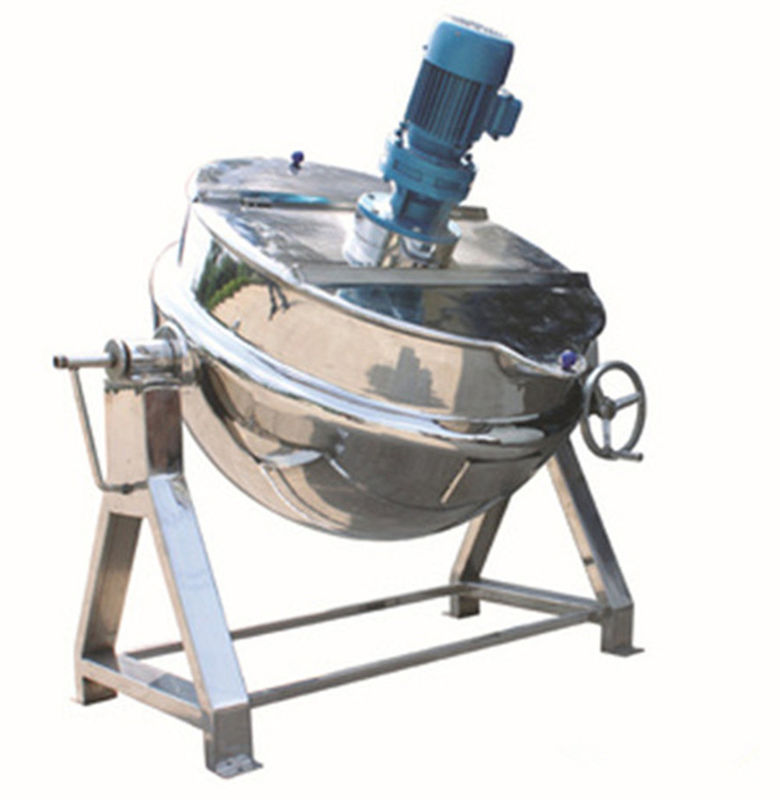

Stainless Steel Steam Heating Jacketed Kettle With Mixer and Scraper For Candy
1. Jacketed Kettle Picture and Insutruction :
Tilting Steam Jacketed Cooking Kettle Structure:
Sauce kettle Pot for Sale China Manufacturer Tilting Jacketed Kettle is mainly composed of pot and tilting frame; And the pot is the double layer structure formed by inside and outside spherical pot; Middle layer can add steam to heat.
Tilting Steam Jacketed Cooking Kettle Material:
A) Common Jacketed Kettle Stainless steel inner pot(SUS304/SUS316L) .
B) All Stainless Steel Jacketed Kettle The whole machine is made of stainless steel (SUS304/SUS316L)
Boiling parameters: Steam Heating Jacketed Kettle
Model |
Heating area (m2) |
Liquid and addition (kg) |
Steam pressure (Mpa) |
Time (min) |
50L |
0.45 |
Tap water 50 |
0.3 |
4-5 |
100L |
0.58 |
Tap water 100 |
0.3 |
5-6 |
150L |
0.88 |
Tap water 150 |
0.3 |
6-7 |
200L |
1.13 |
Tap water 200 |
0.3 |
8-9 |
300L |
1.43 |
Tap water 300 |
0.3 |
10-15 |
400L |
1.75 |
Tap water 400 |
0.3 |
11-18 |
500L |
2.00 |
Tap water 500 |
0.3 |
15-20 |
600L |
2.30 |
Tap water 600 |
0.8 |
15-20 |
1000L |
3.20 |
Tap water1000 |
0.9 |
15-20 |
Tilting Steam Jacketed Cooking Kettle Usage:
1. Sauce kettle Pot for Sale China Manufacturer Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Sauce kettle Pot for Sale China Manufacturer Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Tilting Steam Jacketed Cooking Kettle Characteristics:
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.
1. Pressure: ≤ 0.1 Mpa ----atmospheric vessel ( temperature ≤ 110 centigrade)
> 0.1Mpa----pressure vessel
Before delivery, we will make pressure test to make sure quality.
2. Insulating layer
Usage: To keep temperature and save energy.
To guarantee worker safety.
Material: Rock wool
3. Where comes the steam? ---steam boile (below chart is based on our experience)
Tilting Steam Jacketed Cooking Kettle
