| Certification: | ISO ,CE |
| Model Number: | KQ 500 KQ 1000 KQ3000 |
| Minimum Order Quantity: | 1Set |
|---|---|
| Price: | Negotiable based on special order |
| Packaging Details: | Standard Export Wooden Box . |
| Delivery Time: | 15 days after get your advance payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Set Per Month |
| Name: | Stainless Steel Milk Tank | Material: | Stainless Steel 304 /304L /316 /316L |
|---|---|---|---|
| Heating: | Steam Heating / Gas Heating / Electric Heating | Motor: | ABB , Siemens , SEW |
| Speed Of Mixer: | 18RPM ,36RPM ,48RPM ,72RPM | Treatment: | Inside Mirror And Outside Polished |
| High Light: | stainless steel milk tank,milk cooling tank |
||

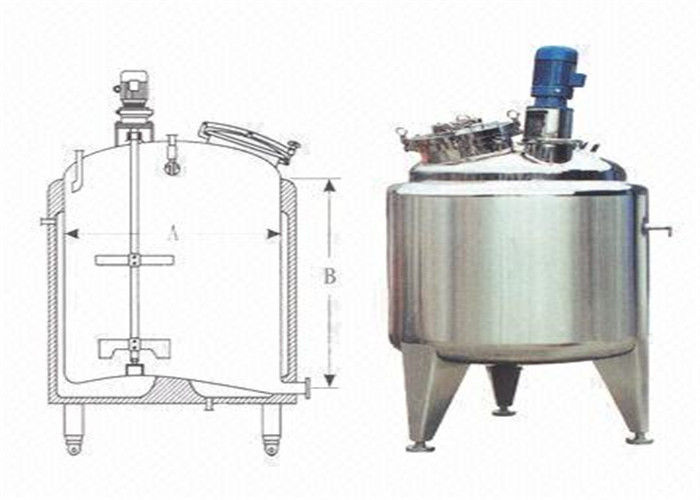

500 Gallon 1000Gallon 2000Galon Milk Cheese Yogurt Heating Cooling Mixing Tank
1. Introduction of the mixing tank .
The tank is mainly used for storing, mixing and heating liquid. It's the ideal mixing, heating and cooling equipment for chemical, food and beverage factory and pharmacy industry.
Capacity: 3000Litres
Material: Sanitary Stainless Steel 316
* Type: with Jacket and insulation
*Internal shell thickness: 4 mm (316)
* Jacket thickness: 3mm(304)
*PU insulation wall: 50mm
* Out shell thickness: 2 mm(304)
*Appearance:
Ellipsoidal head top and down
* Accessories Included:
(1) Manhole
(2) Liquid Inlet / Outlet
(3) Electric Heating Resistance
(4) Glycerin Inlet /Outlet
(5) Temperature Gauge
(6) Electric Motor & Inverter
(7) High Speed Mixer (1600RPM)
(8) CIP Auto Cleaning Ball System
(9) Four Legs
(10)Electric Control Board
(11) Level Meter & Digital Level Meter
2. Technical Parameter :
| Tank Theory Capacity(L) | 3200L |
| Tank Working Capacity (L) | 3000L |
| Working Temperature | 80℃ |
| Material | Internal : SS.316 4mm,The rest SS.304 |
| Surface Treatment | Inside Mirror & Polished Outside |
| Voltage /Hz /Phase | Make to your order . |
| Feeder (Manway ) | 450mm (Can removed easily by Worker .) |
| Heating | Electric Heating |
| Speed of Mixer( Three Blades) and Power of Motor | 36RPM. 4Kw |
| Electric Heating Resistance (Can be removed ) | 12Kw * 6Pieces = 48KW |
| Heating Area(M2) | 6 |
| Manhole | Φ450mm |
| Glycerin Inlet /Outlet (Clamp Type ) | Φ51mm |
| Stirrer Type : | |
| Dimension(CM) | 1.55*1.55*260 (Included The Motor 25CM ) |
| Package | Wrap with Soft material then put to wooden box . |
| Weight (Kgs ) | 1500Kg |
