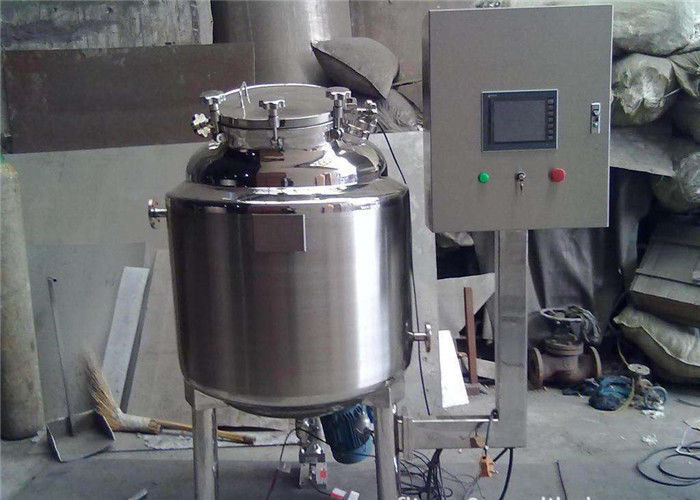

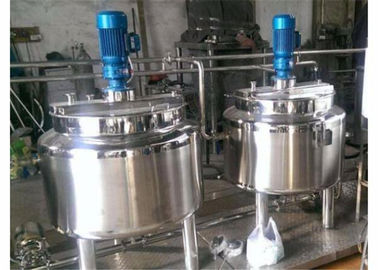

1000L Milk Mixing Tank Double Wall Single Wall Stainless Steel Material For Dairy Farm

1000L Milk Mixing Tank Double Wall Single Wall Stainless Steel Material For Dairy Farm

    • 1000L Milk Mixing Tank Double Wall Single Wall Stainless Steel Material For Dairy Farm
    • 1000L Milk Mixing Tank Double Wall Single Wall Stainless Steel Material For Dairy Farm
  • 1000L Milk Mixing Tank Double Wall Single Wall Stainless Steel Material For Dairy Farm

    Product Details:

    Certification: ISO ,CE
    Model Number: KQ Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Standard Wooden Box or Wooden Pallet
    Delivery Time: 20 days after get your advance payment .
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 500 Sets / Month
    Contact Now
    Detailed Product Description
    Name: Stainless Steel Blending Tanks Material: Stainless Steel 304 / 316
    Motor: ABB / Siemens /SEW Type: Double Wall ,Jacketed Wall ,Heating Wall
    Heating: Steam Heating , Electric Heating Pressure: 0.2Mpa =2Bar
    Air Vent: Yes / No Level: Yes / NO
    Platform: Yes / NO
    High Light:

    stainless steel milk tank

    ,

    milk cooling tank

                   Stainless Steel 1000L Double Wall Sing Wall Milk Mixing Tank For Dairy Farm

    1. Introduction of Milk Mixing Tank :
    Applicable range:
    1. Used as liquid storage tank, liquid composing tank, liquid blending tank, temporary storage tank and hot water tank etc.
    2. Ideal in field such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

    Structure characteristics:
    1. Adopt structure of internal tank and external package, with heat preservation materials inside.
    2. Material are all sanitary stainless steel.
    3. Humanized structure design and easy to operate.
    4.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

    Configuration of tank:
    1. Quick open manhole.
    2. Various types of CIP cleaners.
    3. Fly and insect resistant sanitary breathing cover.
    4. Adjustable triangular bracket.
    5. Dismountable materials input pipe assembly.
    6. Thermometer (According to customer requirements ).
    7. Ladder (According to customer requirements ).
    8.L iquid level meter and level controller (According to customer requirements ).
    9. Eddy-proof board

    2. Technical Parameter :


    Effective CapacityDimension of tank(D*H) Total heightMotor powerBlending speed
    (L)(mm)(mm)(kw)(r/min)
    500840*100027500.55As customer's requirement
    600920*100028500.55
    700990*100028500.55
    800950*122030000.55
    9001010*122030000.55
    10001060*122031500.75
    15001160*150033500.75
    20001340*150034101.1
    30001410*200040001.5
    40001620*200042501.5
    50001810*200043002.2
    60001980*200045502.2
    70001930*244050002.2
    80002060*244050003
    90002180*244050503
    100002300*244050503
    120002270*300056004
    150002530*300057004
    200002640*366064005.5



    1000L Milk Mixing Tank Double Wall Single Wall Stainless Steel Material For Dairy Farm
