| Certification: | ISO |
| Model Number: | KQ500 - 10000 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Discussible |
| Packaging Details: | Wooden Box |
| Delivery Time: | 20 - 30 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20 Sets per month |
| Name: | UHT Milk Processing Plant | Condition: | New |
|---|---|---|---|
| Material: | SS304 | Voltage: | 220V 60HZ 3Phase |
| Warranty: | 1 Year | Packing: | Wooden Boxes |
| High Light: | milk sterilizer machine,uht pasteurization equipment |
||

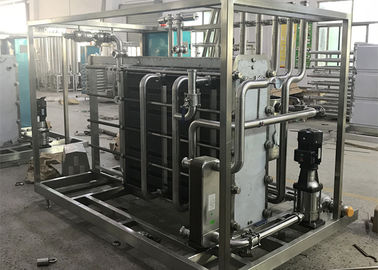

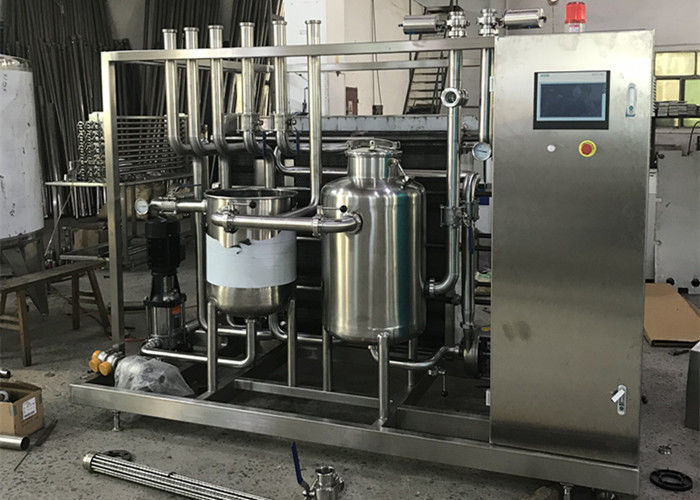

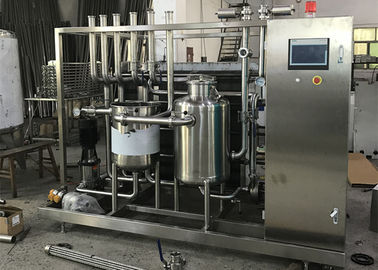

Milk Juice liquid UHT semi - automatic plate type sterilizer equipment
Product Description
(1) Applied:
fruit juice pasteurizer adopts Ultra High Temperature processing method to strictly sterilize milk and other dairy liquid, beverage, juice etc., before an aseptic packaging.
(2) Sterilization temperature: 85℃ -145℃.
(3)Sterilization keeping time: 5 - 45s in order to keep the original nutritional substance, color and flavor of the product.
Controlling way: Semi-automatic and Fully automatic (PLC controlling, tactile screen).
Board Type Sterilization Machine
|
Fruit juice pasteurizer |
UHT-1 |
UHT-2 |
UHT-3 |
UHT-4 |
UHT-5 |
|
Product capacityT/h |
1 |
2 |
3 |
4 |
5 |
|
Heat exchanging area m2 |
16 |
26 |
38 |
46 |
56 |
|
Materal inlet temperature ºC |
5 |
5 |
5 |
5 |
5 |
|
Materal inlet temperature ºC |
5 |
5 |
5 |
5 |
5 |
|
Sterilizing temperature |
137 |
137 |
137 |
137 |
137 |
|
137Warmkeeping timeS |
4 |
4 |
4 |
4 |
4 |
|
Ice water temperature ºC |
1 |
1 |
1 |
1 |
1 |
|
Ice water cos T/h |
3 |
4 |
6 |
8 |
12 |
|
Jiont size mm |
φ 25 |
φ 38 |
φ 38 |
φ 51 |
φ 51 |
|
Weight kg |
980 |
1080 |
1160 |
1350 |
1680 |
|
Size mm |
1500 * 1500 |
1900 * 1800 |
1900 * 1800 |
1900 * 1800 |
2600 * 2200 |
|
power kw |
3 |
4 |
5 |
6 |
6 |
FAQ
| 1. Delivery ? |
| 20 - 30 working days after get your advance payment . |
| 2.Payment : |
| Western Union,TT , 50% in advance ,the rest before shipment . |
| 3. Price available ? |
| FOB CIF CNF CFR Shanghai/Ningbo China . |
| 4. Can we visit your factory . |
|
Yes , welcome to visit our factory .We can talk face to face and you can check the quality by yourself . |
| 5. How to know the technical details of the UHT Sterilizer ? |
|
Send your inquiry ,we will give you full details with our quotation . |
| 6.Do you have other type UHT sterilizer ? |
| Yes , we have picture for your reference. |
Our Services
1. Quotation can be available within 1 hours after we get your reply .
2. We provide lifelong technical service.
If the customer needs, we can provide the engineer overseas technical service.Salary negotiable.
