Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm

Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm

    • Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm
    • Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm
    • Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm
  • Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm

    Product Details:

    Certification: ISO
    Model Number: 500L-10000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 4000USD
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 20 days after get your advance payment .
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100 Set per month
    Contact Now
    Detailed Product Description
    Name: Dairy Milking Equipment Material: Sanitary Stainless Steel 304 / 316
    Refrigerating Liquid: 404A / R22 Air Compressor: Copeland (USA Brand )
    Motor Brand: ABB / Siemens Speed Of Mixer: 36RPM
    Surface Treatment: Inside Mirror And Outside Polished Insulation Thickness: Polythure Foam :75 Mm
    High Light:

    milk cooling equipment

    ,

    milk chiller tank

                       Raw Milk Tank Milk Storge Tank Milk Cooling Tank for Milk Dairy Farm

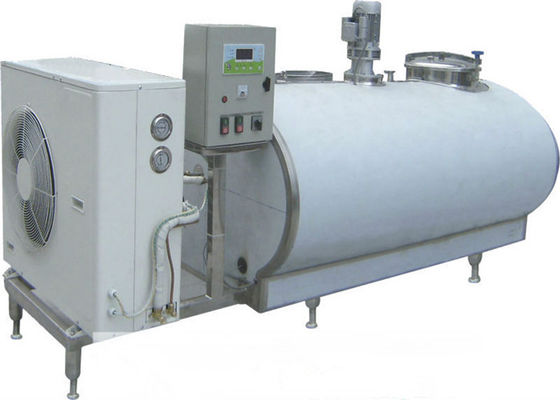

    1. Milk Cooling Tank Picture :

    Details of Stainless Steel Milk Tank , Milk Cooling Tank:

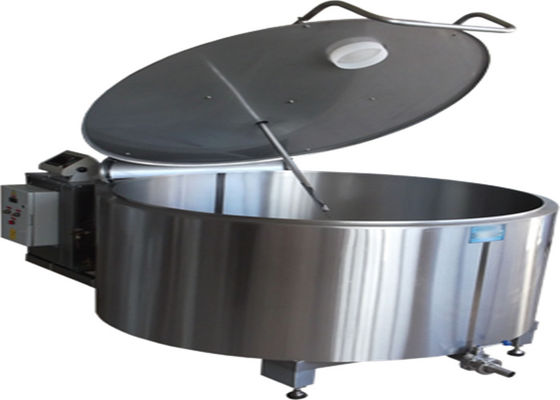

    A.Type: Vertical type and horizontal type;
    B. Material: Stainless Steel 304
    C. Capacity: 200L to 10000L;
    D. Power: 1.1kw-20kw
    E. Cooling Capacity: 5kw-70kw
    F. Agitator: Cooling Tanks for Milk built with agitator
    G. Speed 32-36rmp/min
    H. Manual or automatic available
    I. OEM service available;
    Stainless Steel Milk Tank , Milk Cooling Tank Description:



    Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm
    Stainless Steel Milk Tank , Small Milk Cooling Tank is mainly used in preserving and storing fresh milk or other fresh liquid (sour milk, soft drink and wine etc.)cooling, so as to refrigerate and retain freshness, prevent bacterial breed. The milk collection device and vacuum tank use stainless steel and are made by advanced foreign technology. They feature stable vacuum performance and pleasant appearance.
    Material: Double-walled stainless steel, resistance to high temperature and
    corrosion resistance.
    Standard: Design and manufacture according to ISO9001: 200,ISO9001-2008 and GBT10942-2001
    ISO 5708: 1983 refrigerate standard.
    Compressor: The milk tank adapt high-performance, low noise, stability.
    Display: with control panel and digital could be display.
    Insulating: with thickness 60-80mm polyurethane foam to keep thermal insulation.
    Cleaning: Automatic clean and wash milk and other liquid, high efficient and convenient.

    Stainless Steel Milk Tank , Milk Cooling Tank Applications:


    1. used in preserving and storing fresh milk cooling;
    2. used for other fresh liquid (beer, juice soft drink and wine etc.)cooling;
    3. used to to refrigerate and retain freshness;
    4. used to prevent bacterial breed;
    5. used in milk collection center or station;
    6. used in dairy and food factory;
    7. used in pasture and dairy farmer;

    Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm

    2. Technical details :

    A Basic Design Parameters
      Parameters Standard Value
    I Milk storage (Rated) capacity 7,000 litres (Customized)
    ii Maximum cooling temperature range Milk can be cooled from 350C to 2 or 40C
    iii Maximum cooling time Total capacity milk can be cool down from 350C to
    30C to 40C within 2 to 3 hours.
    iv Connected power 380V -3phase / 220V 3phase
    v Ambient temperature considered when design 43degree C

    3. Factory :

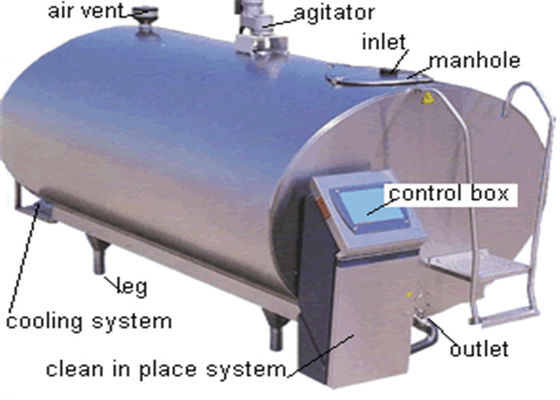

    Stainless Steel Milk Cooling Tank Structure
    Vertical cooling milk pot is mainly composed of pot body, stirrer, and washing machine, cooling unit and electric control boxes.
    Milk pot is a horizontal elliptic form, between the inside and outside pot is poly amino ester hard foam board, the material has low thermal conductivity, light proportion, high strength, and low bibulous rate. Insulation layer, insulation performance is good.
    Raw Milk Chilling Unit / Dairy Cooling Equipment For Milk Dairy Farm
