Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks

Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks

    • Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks
    • Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks
    • Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks
  • Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks

    Product Details:

    Certification: ISO
    Model Number: 1000L to 50000L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 2600USD /Set
    Packaging Details: Standard Export Wooden Box
    Delivery Time: 10 to 15 days after get your advance payment
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 100 Set Per month
    Contact Now
    Detailed Product Description
    Name: Stainless Steel Fermentation Tanks Material: Stainless Steel 316 /304
    Type: Jacketed & Food Grade Tank Wall: Inner Wall ,Jacketed Wall , Outside Wall
    Motor: 0.55 To 7.5Kw Pressure: 0.2Mpa
    Manhole: Yes Air Vent: Yes
    Level Meter: Digital Type
    High Light:

    sanitary stainless steel tanks

    ,

    stainless steel blending tanks

               2018 Sanitary Stainless Steel 304 316 Heating Fermentation Mixing Tanks Price

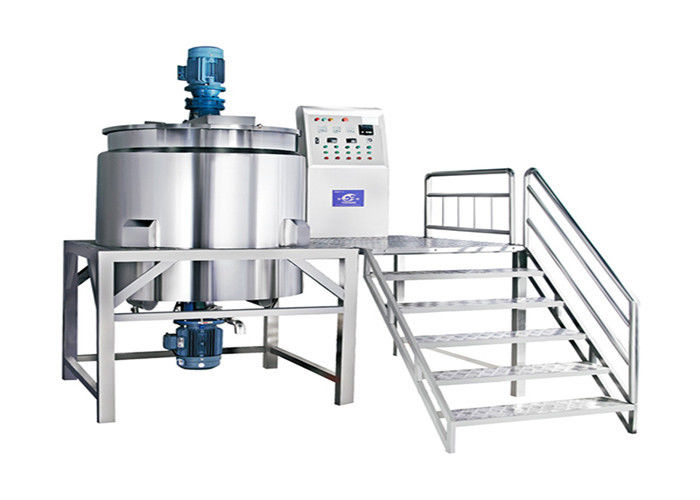

    1. Tank Picture and Instruction :



    sanitary juice liquid mixing tank stainless steel storage tank
    sanitary juice liquid mixing tank stainless steel storage tank can be used as liquid storage tank, liquid mixing tank ,liquid heating or cooling tank and so on.It is suitable for food, dairy products, fruit juice beverage, pharmaceutical and chemical and biological engineering.
    Finish:Mirror or Matt Polish; Ra<0.4um



    Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks


    1. Material:Stainless steel, austenitic stainless steel 304, 316L etc, with insulating material or not
    2. Tank shell thickness:3mm at least (according to the design or your required)
    3. Design work pressure (MPa):-0.1~~1.6MPa (According to the China national standard, breakthroughs in the foregoing measurements are allowed in special cases)
    4. Design work temperature:-4~~+150C
    5. General accessories(If required):Manhole, CIP, respirator, sight glass, mixing(Top side or bottom)
    Certification: CE  ISO9001:2000.

    Have different kinds of agitators:


    1, Bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50-800rpm. this kind of agitator is mixing thin viscosity , such as eyedrop, injection, CIP liquid, water, etc.
    2, Top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. this kind of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc.
    3, Top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment or viscosity oral liquid, etc.
    4, Top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.
    5, Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc.



     Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks



    2. Technical Parameter :



    2018 Sanitary Stainless Steel 304 Heating Fermentation Mixing Tank Price



    Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks





    cooling and heating tank with scraper agitator or with mixer
    Effective
    Volumn(L)
    Dimension of
    Tank(mm*mm)
    Total Height
    (mm)
    Diamension
    of inlet&outlet
    (mm)
    Heat
    preservation
    layer(mm)
    500 840*1000 2250 38 60
    600 920*1000 2300 38 60
    700 990*1000 2300 38 60
    800 950*1220 2500 38 60
    900 1010*1220 2500 38 60
    1000 1060*1220 2550 51 60
    1500 1160*1500 2850 51 60
    2000 1340*1500 2900 51 60
    3000 1410*2000 3400 51 60
    4000 1620*2000 3450 51 60
    5000 1810*2000 3500 51 60
    6000 1980*2000 3550 51 60
    7000 1930*2440 4000 51 60



    1000L 2000 Gallon Stainless Steel Mixing Tank for Food Industry



    3. Inside of the tank :



     Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks



    4. Factory :



    Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks

     Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks

    Professional Stainless Steel Mixing Tanks Food Grade SS Fermentation Tanks
